Preferences

The Preferences dialog controls every aspect of aMule's behaviour. Open it from the toolbar's Preferences button or from the menu.

Settings are grouped into sections. Click the appropriate section in the list on the left side of the window to view its options. The sections appear in the order described below.

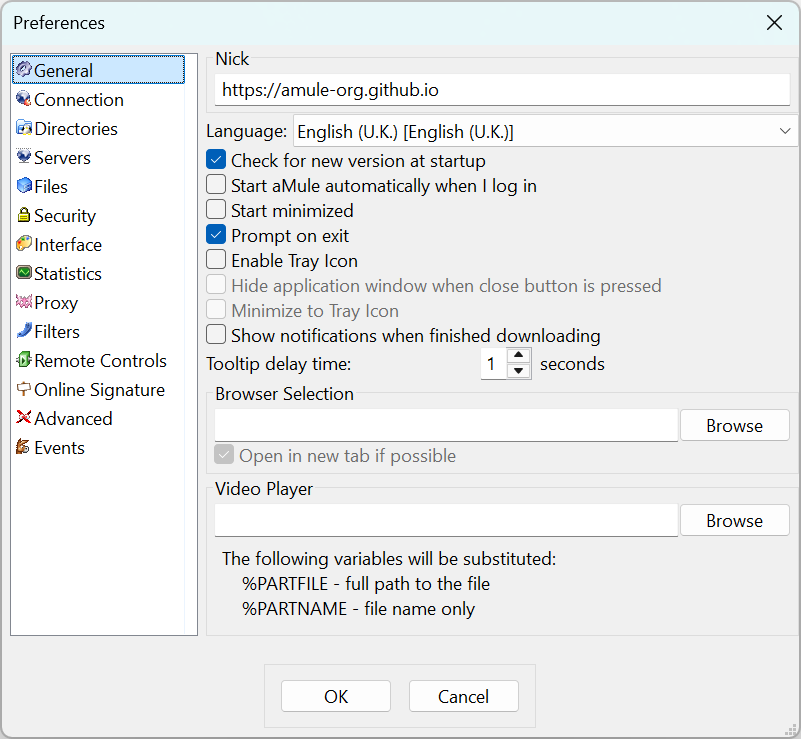

General

Options regarding general aspects of aMule.

Setting	Description
Nick	Username displayed to other clients on the network.
Language	Language for the aMule interface. On UNIX systems this requires the appropriate LC_ALL (or LC_MESSAGES) environment variable. System default uses the system's language. Requires a restart.
Periodically check for a new version	Check whether a new aMule release is available — at startup and once a day while running — and display a message if so (NewVersionCheck). Hidden in builds compiled without the version check (typically those shipped by OS package managers) and, in amulegui, when the connected core cannot check.
Start aMule automatically when I log in	Launch aMule automatically when you log in to your desktop session. The state is stored by the OS (Windows registry Run key, macOS LaunchAgent, Linux XDG .desktop autostart entry), not in amule.conf. The command-line equivalent is --configure-autostart=on|off (see amule). See Starting aMule Automatically.
Register aMule for ed2k:// links	Make aMule the default handler for ed2k:// links, so clicking one in a browser or file manager opens it in aMule. Registered with the OS, not stored in amule.conf.
Register aMule for magnet: links	Make aMule the default handler for magnet: links. aMule only handles eD2k-compatible magnets (with an xt=urn:ed2k: or xt=urn:ed2khash: hash and an xl size); BitTorrent magnets are not supported. Registered with the OS.
Open .emulecollection files with aMule	Associate .emulecollection files with aMule; opening one queues every eD2k link it contains. Registered with the OS. On Windows the association only becomes the default if no other program has claimed the file type.
	The three registration checkboxes above take effect immediately, not when you click OK. aMule asks before replacing another application's handler, and the checkbox reverts if the registration fails. On macOS a handler cannot be unregistered, so the checkbox is hidden once aMule is the handler. See eD2k and Magnet Links.
Start minimized	Minimize aMule to the taskbar when it starts.
Prompt on exit	Show a confirmation dialog when closing aMule.
Enable Tray Icon	Show a system tray icon for aMule. Takes effect without a restart. On some Linux and BSD builds it is greyed out when no system tray is available (see System Tray Icon).
Hide application window when close button is pressed	Instead of quitting, hide aMule to the tray icon when the window's close button is pressed. Requires Enable Tray Icon.
Minimize to Tray Icon	When minimizing aMule, hide the window completely so it can only be restored from the tray icon. Requires Enable Tray Icon. Not available on Wayland, which does not report when a window is minimized; launch aMule with GDK_BACKEND=x11 to use XWayland instead.
Show notifications when finished downloading	Display a desktop notification each time a download completes.
Remember search history	Persist past search terms (in searchhistory.dat) and the results of the open searches (in StoredSearches.met) across restarts (SearchHistoryEnabled). Turning it off stops recording new terms and deletes the saved results on the next start; the saved terms are kept until you clear them. See Searches.
Tooltip delay time	Number of seconds (0–9, default 1) before tooltips appear. Applies to every tooltip in aMule.
Browser Selection	Command used to start the browser aMule opens web sites with. Leave it empty to use the system default browser (on macOS the default is /usr/bin/open). Use the Browse button to locate the browser executable.
Open in new tab if possible	Open web sites in a new browser tab rather than the current page. Disabled on Windows.
Video Player	Command used to preview files: any unfinished download, or a completed audio or video file. The file path is appended as the last argument, unless the command contains one of the variables shown in the panel: %PARTFILE (full path to the file) or %PARTNAME (file name only — for an unfinished download, the .part file's name). Empty by default: completed files are then opened with the desktop's default application, but an unfinished download (.part file) cannot be previewed without a player. Use the Browse button to locate the player executable.

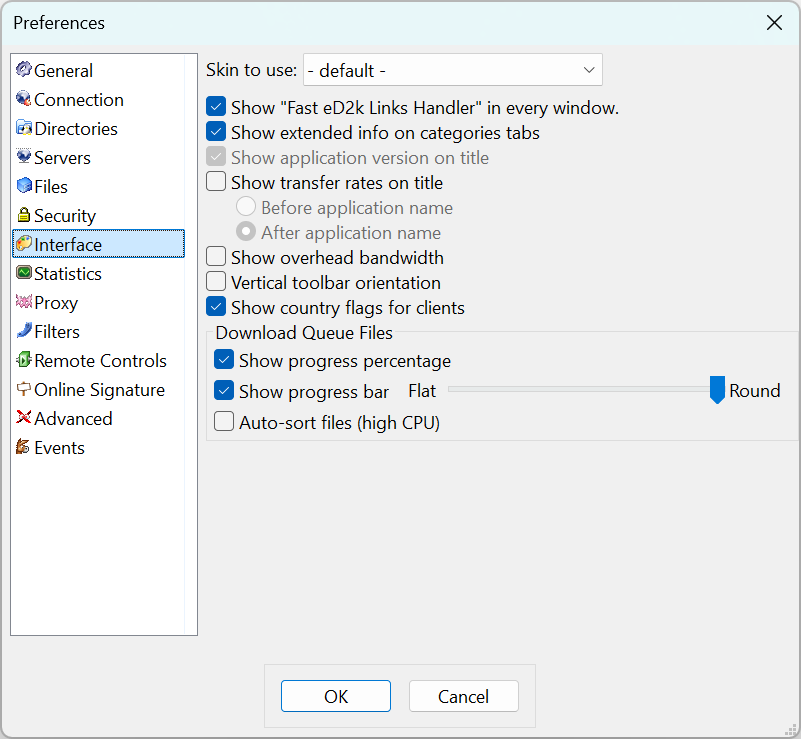

Interface

Options for aMule's graphical interface.

Setting	Description
Appearance	Colour scheme of aMule's windows: Follow system, Light mode or Dark mode. Requires a restart. Shown only in builds with wxWidgets 3.3 or later, such as the Windows and macOS packages (not the AppImage or Flatpak).
Skin to use	Select the skin (bitmap theme) for aMule. - default - uses the built-in bitmaps. See Skins.
Show "Fast eD2k Links Handler" in every window.	Show the eD2k Link Handler in all windows, not only the Searches window.
Show extended info on categories tabs	Display the number of downloading files and total files in each category tab title.
Show application version on title	Show the aMule version in the window title bar. Always on (and greyed out) in development builds.
Show transfer rates on title	Show transfer speeds in the window title bar, either Before application name or After application name. These two choices are enabled only while the checkbox is ticked.
Show overhead bandwidth	Show protocol overhead bandwidth in the status bar.
Vertical toolbar orientation	Show the toolbar vertically (enabled) or horizontally (disabled).
Live column sorting (auto-reorder rows as their values change)	Keep the list views (downloads, uploads and others) sorted live as rows update, not only when you click a column header (LiveListSort).

Download Queue Files

Setting	Description
Show progress percentage	Display the completed percentage for each file in the download queue, above the progress bar.
Show progress bar	Show a progress bar indicating chunk availability for each file in the download queue.
Flat – Round slider	Unlabelled slider next to Show progress bar that sets the progress bar's 3D depth, from Flat to Round.

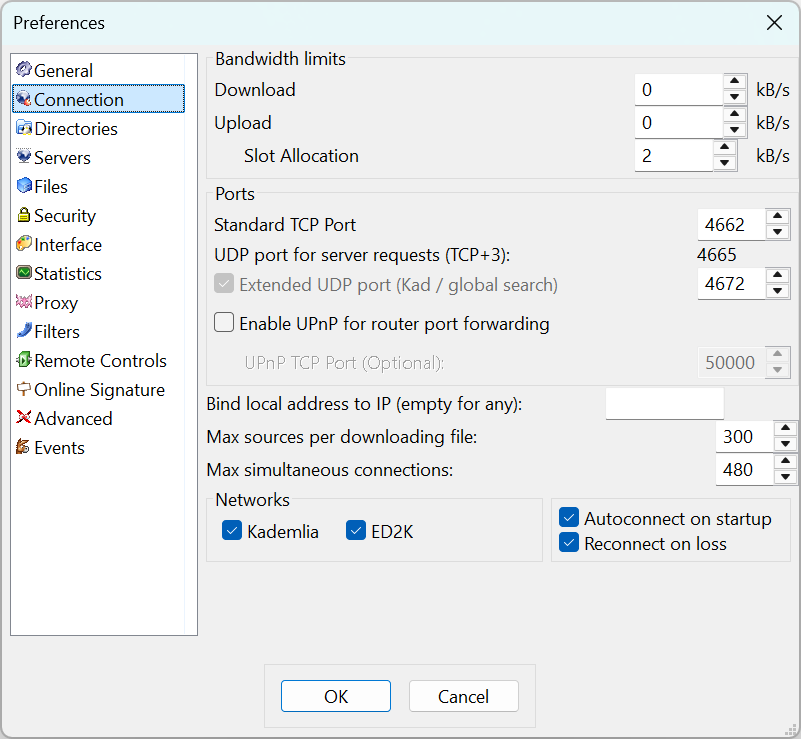

Connection

Options regarding aMule's network connections.

Line capacities

What your connection can carry, in KiB/s. These values do not throttle transfers: they set the range of the limit sliders below, the scale of the speed graphs in Statistics, and the tray icon's speed bar and speed-limit presets.

Setting	Description
Download	Download line capacity. Default: 12500 (about 100 Mbit/s).
Upload	Upload line capacity. Default: 2500 (about 20 Mbit/s).

Bandwidth limits

Setting	Description
Enable download limit	Limit the download speed. When unticked, the download speed is unlimited.
Download limit	Maximum download speed (KiB/s). Type a value, or use the slider below it, which goes up to the download line capacity.
Enable upload limit	The same for the upload speed.
Upload limit	Maximum upload speed (KiB/s), set the same way. A low upload limit also caps the download limit: below 4 KiB/s the download limit is set to at most 3× the upload limit, and below 10 KiB/s to at most 4×.
Slot Allocation	Target speed per allocated upload slot (KiB/s). Default: 10. aMule derives the number of upload slots from it — see Bandwidth & Upload Slots.
Bandwidth calculator...	Convert limits given in Mbit/s into KiB/s. OK copies the results into the two limit fields.

These values are in kibibytes per second (KiB/s, 1 KiB = 1024 bytes), while ISP speeds are usually advertised in megabits per second (Mbps). To convert approximately, multiply the Mbps figure by 122 (e.g. a 100 Mbps line ≈ 12,200 KiB/s), or let Bandwidth calculator... do it. A good starting point is roughly 80% of your actual line speed. See Slow Download Speeds for why setting realistic limits matters.

Ports

Setting	Description
Standard TCP Port	The standard eD2k client TCP port. Default: 4662.
UDP port for server requests (TCP+3)	Read-only display. This port is always the standard TCP port + 3 (default 4665). Shows disabled when the ED2K network is disabled.
Extended UDP port (Kad / global search)	Enable and set the extended client UDP port used for Kad and global searches. Default: 4672. Unchecking it frees a UDP port but reduces aMule's performance. While Kademlia is enabled the checkbox is forced on and greyed out, so it can only be unchecked with Kad disabled.
Enable UPnP for router port forwarding	Ask a UPnP-capable router to forward aMule's ports automatically. The UPnP controls are disabled in builds without UPnP support and, in amulegui, when the connected core lacks it.
UPnP TCP Port (Optional)	Local TCP port aMule's UPnP stack listens on to talk to the router (UPnPTCPPort). It is not forwarded on the router — see UPnP. Default: 50000.

A new TCP or UDP port takes effect when you click OK, without a restart. If the new port cannot be opened, aMule shows an error and keeps the old one. amulegui asks for a restart.

Limits

These settings sit below the Ports box, outside any group box.

Setting	Description
Bind local address to IP (empty for any)	Local IP address aMule binds its sockets to — the listening sockets and outgoing eD2k connections to clients and servers (Address). Leave empty to bind to any local address. Changing it requires restarting aMule.
Bind to network interface (empty for any)	Pin aMule's eD2k and Kad sockets (and its HTTP downloads, where wxWidgets' curl backend is available — never on Windows) to a single interface, chosen from the drop-down or typed in by name (e.g. tun0, eth0, en0) or index — not an IP address (NetworkInterface). Unlike Bind local address to IP, this stops traffic leaking out via the default route (useful with a VPN) and needs no elevated privileges, except on Linux kernels older than 5.7, which require CAP_NET_RAW. Empty = use any interface. In amulegui this is a plain text field without the drop-down. Not supported on BSD. The External Connections listener has its own setting in Remote Controls. Changing it requires restarting aMule.
Max sources per downloading file	Maximum number of sources remembered for each file. Default: 300.
Max simultaneous connections	Maximum number of simultaneous connections (5–7500). Default: 500, or lower if the operating system's connection limit is lower.

Networks

Setting	Description
Kademlia	Enable the Kademlia network. If disabled, connection is only possible by explicitly using the Networks window.
ED2K	Enable the eD2k network. If disabled, connection is only possible by explicitly using the Networks window. Disabling it also removes the Servers page from the dialog. Enabling it takes effect without a restart.
	Autoconnect on startup and Reconnect on loss are in a separate, unlabelled box to the right of Networks.
Autoconnect on startup	Connect aMule to the enabled networks when it starts.
Reconnect on loss	Attempt to connect to a server when disconnected. On error it reconnects to the same server; on explicit server disconnect it tries another server.

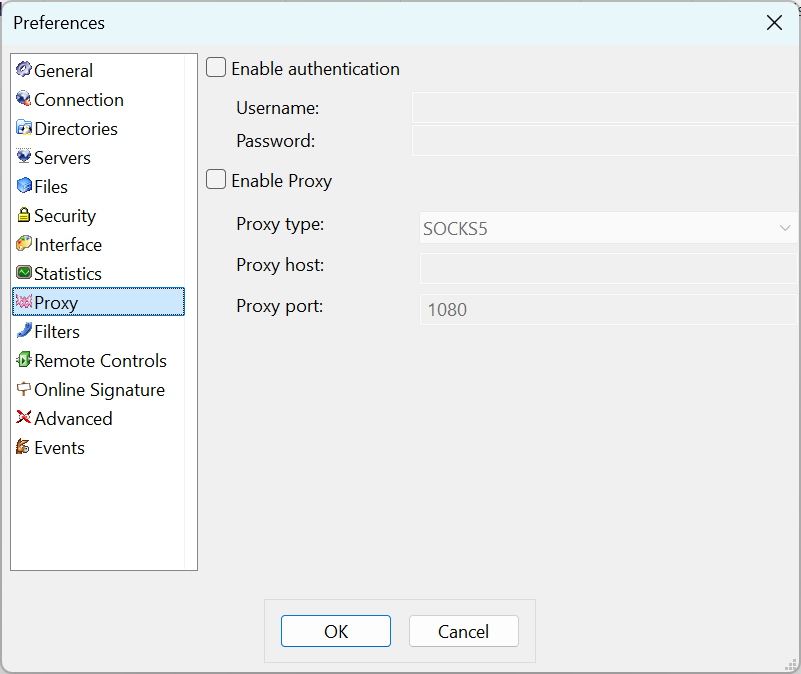

Proxy

Options for connecting through a proxy server. See Proxy configuration for a full explanation of how the proxy feature works.

Setting	Description
Enable Proxy	Enable the use of a proxy.
Proxy type	Protocol of the proxy: SOCKS5 (default), SOCKS4, HTTP, or SOCKS4a.
Proxy host	Hostname or IP address of the proxy server.
Proxy port	Port through which the proxy is accessed. Default: 1080.
Enable authentication	Use a username and password to log into the proxy. If disabled, anonymous login is performed.
Username	Username to log into the proxy.
Password	Password to log into the proxy.

Changing any proxy setting requires restarting aMule for HTTP transfers to use it.

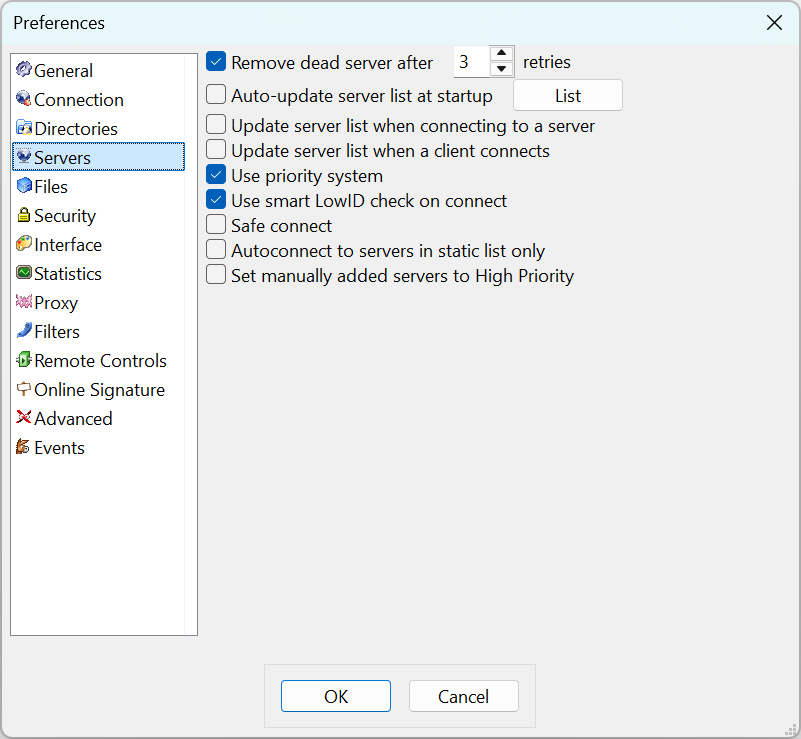

Servers

Options for connecting aMule to eD2k servers. This page is removed from the dialog when the ED2K network is disabled in Connection.

Setting	Description
Remove dead server after n retries	Number of failed connection attempts or pings after which a server is removed from the server list. Servers marked static are never removed. Range 1–10, default 3.
Auto-update server list at startup	At startup, download a server list from each of your server list sources and merge it into your server list. Click Edit sources... to edit the source URLs, one per line (the same editor as on the Networks page). A new profile starts with https://upd.emule-security.org/server.met. The checkbox cannot stay ticked while the list is empty.
Update server list when connecting to a server	After connecting to a server, request its full list of known servers and add any new entries. While this is unticked, a server cannot change your server list.
Update server list when a client connects	When connecting to a client, request its server ID and add it if not already known.
Use priority system	Assign Low/Normal/High priority to servers via right-click. aMule contacts servers in priority order.
Use smart LowID check on connect	Perform a smart check for a LowID when connecting to a server.
Safe connect	When enabled, aMule tries to connect to one server at a time. When disabled, it makes two simultaneous attempts.
Autoconnect to servers in static list only	aMule attempts to connect only to servers marked as static.
Set manually added servers to High Priority	Servers added manually get High priority. The priority can be changed later.

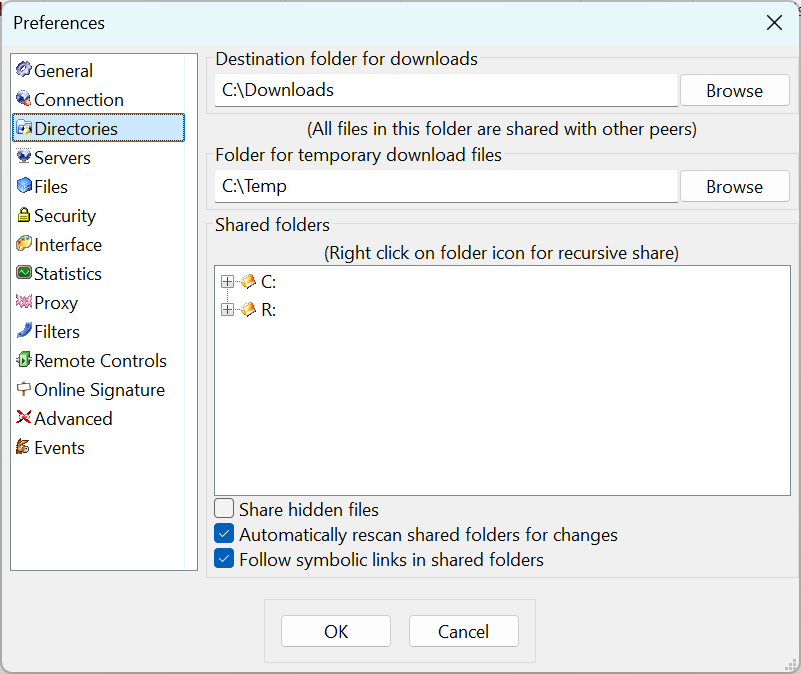

Directories

Options for aMule's file system paths. For full details — default locations on each platform, per-category incoming folders, and how shared directories work — see Directories.

Setting	Description
Destination folder for downloads	Directory where completed files are stored. All files in this folder are shared with other peers. Use the Browse button to select it.
Folder for temporary download files	Directory where incomplete downloads are placed. Use the Browse button to select it. Requires a restart. In amulegui both Browse buttons are disabled unless the core runs on the same machine (localhost).
Shared folders	Directories whose files are shared with the network. Right-click a folder icon to select all its contents recursively.
	Normal font — directory is not shared. Bold font — directory is shared. Yellow folder — no subdirectories marked as shared. Red folder — subdirectories are marked as shared.
	In amulegui the tree is replaced by a list of the folders shared by the core: type an absolute path on the core's machine, tick Recursive to also share every sub-folder (including ones created later), and click Add; select an entry and click Remove to stop sharing it.
Share hidden files	Include hidden files from shared directories.
Automatically rescan shared folders for changes	Watch the shared folders so files added, changed, removed or renamed outside aMule are picked up automatically.
Follow symbolic links in shared folders	Follow symbolic links (to files or directories) when scanning shared folders. Enabled by default; disable it to skip symlinked entries. Read-only in amulegui.
Exclude files and folders matching	Names of files and folders not to share, as |-separated wildcard patterns (e.g. .DS_Store|Thumbs.db|*.tmp), case-insensitive. A matching sub-folder is skipped with everything in it, but a folder you share yourself is always shared. The default list covers common OS junk files and office documents (*.doc, *.xlsx…); a list saved by aMule 3.1.0 is kept as it is, without the office documents. See ExcludeSharePatterns.
Patterns are regular expressions	Treat the whole Exclude files and folders matching field as one regular expression instead of a list of wildcards. OK warns when the expression is invalid, and the filter is then disabled.
Preview	Show how many shared files and folders the patterns would exclude, so you can check a pattern before applying it. Hidden in amulegui.

In amulegui the page also shows Folders the daemon allows remote changes in: the read-only list of folders where amulegui may set the incoming, temporary, shared and category folders. While it is empty, no folder can be set from amulegui. It is configured on the core; see Folders remote clients may use.

Path Mappings

nota

This panel appears only in amulegui (remote-GUI builds). It is not shown in the monolithic amule client, where the core and the files it reports are always on the same machine.

Options for translating the file paths a remote core reports into paths that are reachable from the machine running amulegui.

When the connected core's files live on a different machine, its Open the file and Show in file manager actions use paths that do not exist locally. A path mapping rewrites a remote prefix (a path as the core reports it) to a local prefix (where that same folder is reachable from here, for example a mounted network share), so those actions resolve correctly.

Each mapping is checked in list order and the first matching prefix wins. A prefix only matches up to a path separator, so /mnt/data matches /mnt/data/file but not /mnt/data-old; trailing separators are stripped when a mapping is added. The mappings are persisted to remote.conf.

Setting	Description
Remote prefix	A path prefix exactly as the core reports it, e.g. /home/user/downloads/incoming.
Local prefix	Where that same folder is reachable from this computer. Use the Browse button to select a local folder.
Add	Add the current Remote prefix → Local prefix pair to the list. Both fields are required; a remote prefix that is already mapped is rejected.
Remove	Remove the selected mapping from the list.

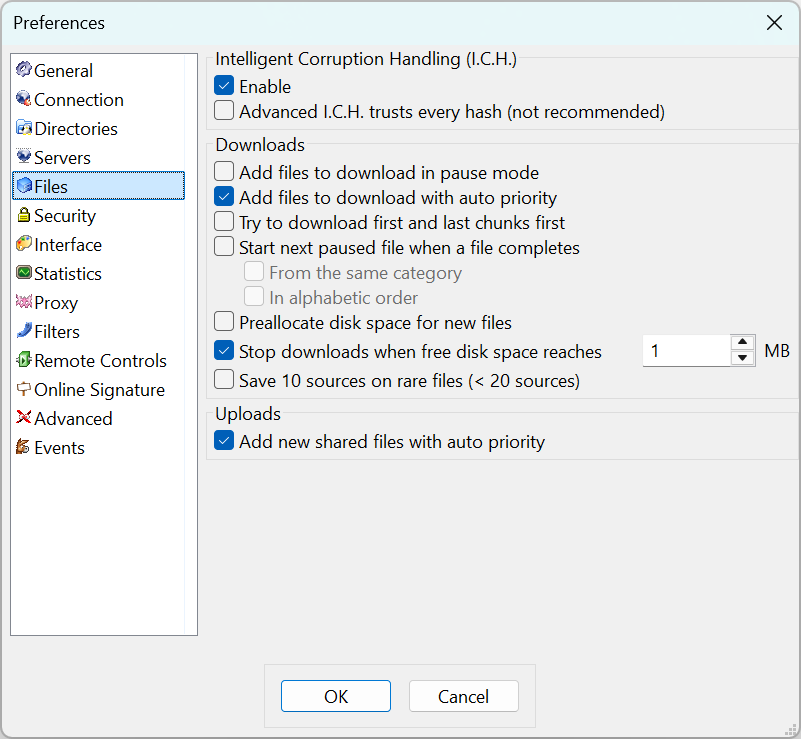

Files

Options for downloading and sharing files.

Downloads

Setting	Description
Add files to download in pause mode	Newly added downloads start in the paused state.
Add files to download with auto priority	Newly added downloads get automatic priority.
Try to download first and last chunks first	Always try to download the beginning and end of files first. Useful for previewing audio and video files.
Endgame mode: rotate to faster sources for the final blocks	When only the last few parts of a file are left, let faster sources take over blocks from much slower ones, so a download does not stall at 99% behind one slow peer. Enabled by default.
Start next paused file when a file completes	When a file completes, automatically resume the highest-priority paused file.
From the same category	When the above option is enabled, resume the highest-priority paused file in the same category (if one exists).
In alphabetic order	When resuming the next paused file, pick it in alphabetic order instead of by priority.
Preallocate disk space for new files	Reserve the full file size on disk when a download starts, reducing fragmentation.
Create new files as sparse files	Create part files as sparse files, so they only occupy disk space for the parts already downloaded (CreateSparseFiles). Enabled by default. This setting affects only a Windows core: the monolithic amule hides the checkbox on macOS, Linux and BSD, where part files are sparse anyway, while amulegui always shows it because it cannot tell the core's platform.
Stop downloads when free disk space reaches n MiB	Pause downloads when free disk space would fall below the given minimum (in MiB; 1–1000000, default 500). The number field is enabled only while the checkbox is ticked. See Disk Space Protection.
Save up to 10 HighID sources of rare files (20 or fewer sources) on exit	On exit, save up to 10 sources of each rare download, so they can be asked again on the next start. They are used only if aMule restarts within 2 hours.

Uploads

Setting	Description
Add new shared files with auto priority	Files added to shared directories, or completed downloads, get automatic share priority.
Verify local data of requested shared files every n days (0 = off)	When a peer requests a complete shared file not checked in the last n days, re-check it in the background, as Verify Local Data does. Corrupt parts stop being shared. Default 0 (off).

Intelligent Corruption Handling (I.C.H.)

Setting	Description
Enable	Enable Intelligent Corruption Handling.
Advanced I.C.H. trusts every hash (not recommended)	When unchecked (recommended), aMule applies sanity checks to received AICH hashes instead of blindly trusting them.

File repair hashes over Kad

Setting	Description
Share and use file repair hashes (AICH) over Kad	Share the AICH repair hashes of your files over Kad and learn other files' hashes from Kad, so a damaged part can be repaired without downloading it again. On by default. Very old Kad clients (before eMule 0.49b) may miss search results that contain these hashes; if you notice missing results, try turning it off. Greyed out in amulegui when the core does not support it.
Ignore repair hashes from Kad nodes too old to support them	Off by default. A node's reported version can be wrong, so this may discard valid hashes and does not make the accepted ones trustworthy. Enabled only while the option above is ticked.

Media metadata extraction

aMule can run ffprobe on shared audio and video files to extract their length, bitrate and codec, plus the artist, album and title tags when the file carries them. These fields fill the Length, Bitrate, Codec, Artist, Album and Title columns of the Shared Files list, and are published with the file to eD2k servers and Kad, so other clients see them in their search results and the servers and Kad nodes that index the file can use them to answer searches. See the [MediaMetadata] section of amule.conf for the underlying keys.

Setting	Description
Extract length / bitrate / codec from shared audio and video files	Enable media-metadata extraction (Enabled, on by default). Despite the label, it also extracts the artist, album and title tags. Requires ffmpeg (the ffprobe binary) to be installed. The controls below are greyed out while it is off.
Path to ffprobe	Full path to the ffprobe binary (FFProbePath). Leave empty to auto-detect it on startup. Use Browse to locate it, or Detect to search the system PATH and the standard install locations. OK refuses a file that is not ffprobe. Read-only in amulegui: the path can only be set on the core's machine.

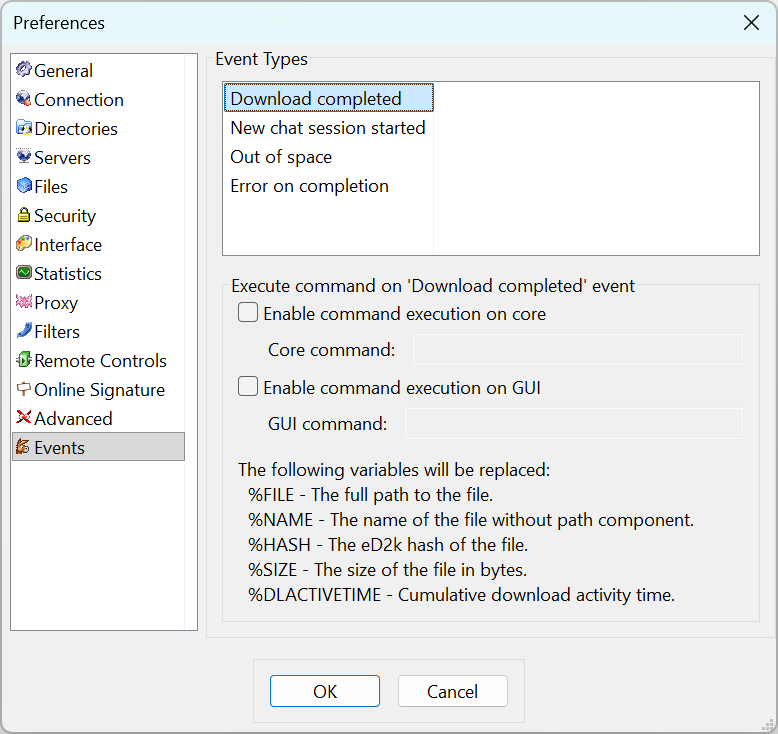

Events

Configure commands aMule runs when specific events occur, such as when a download completes or when disk space runs out. The command can do anything, e.g. send an email notification.

Select an event in the Event Types list (Download completed, New chat session started, Out of space, Error on completion) to show its settings in the Execute command on '…' event group box below the list.

Setting	Description
Enable command execution on core	Run the core command when the event fires (CoreEnabled).
Core command	Command run by the core (amuled or the monolithic amule) (CoreCommand).
Enable command execution on GUI	Run the GUI command when the event fires (GUIEnabled).
GUI command	Command run by the GUI (GUICommand).

In amulegui the core command fields are greyed out (they are configured on the core), and only Download completed and New chat session started can run a GUI command. The Download completed GUI command does not run for downloads already complete when amulegui connects, and %FILE is empty.

Below the fields, the panel lists the variables that will be replaced in the commands for the selected event. The settings are stored in the [UserEvents] section of amule.conf. See the dedicated Events page for a full description of event types, variables, and example scripts.

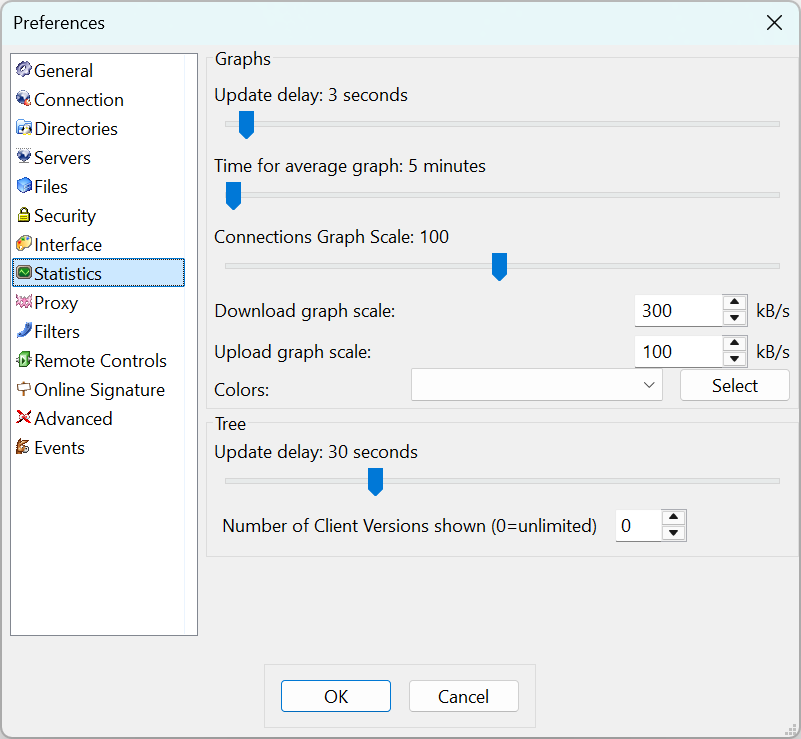

Statistics

Options for aMule's Statistics display.

Graphs

Setting	Description
Update delay	Refresh interval for statistics graphs (seconds, 0–120, default 3).
Time for average graph	Time interval used to calculate running averages in graphs (minutes, 5–100, default 5).
Connections Graph Scale	Maximum number of connections the connections graph can represent (2–200, default 100).
Colors	Select colours for each item in the statistics display. Choose the item from the menu, then click Select.

The scale of the download and upload graphs is the line capacity set in Connection → Line capacities.

Tree

Setting	Description
Update delay	Refresh interval for the statistics tree (seconds, 5–100, default 30).
Number of Client Versions shown (0=unlimited)	Maximum number of client versions displayed for each client application in the statistics tree (0–255, default 0).

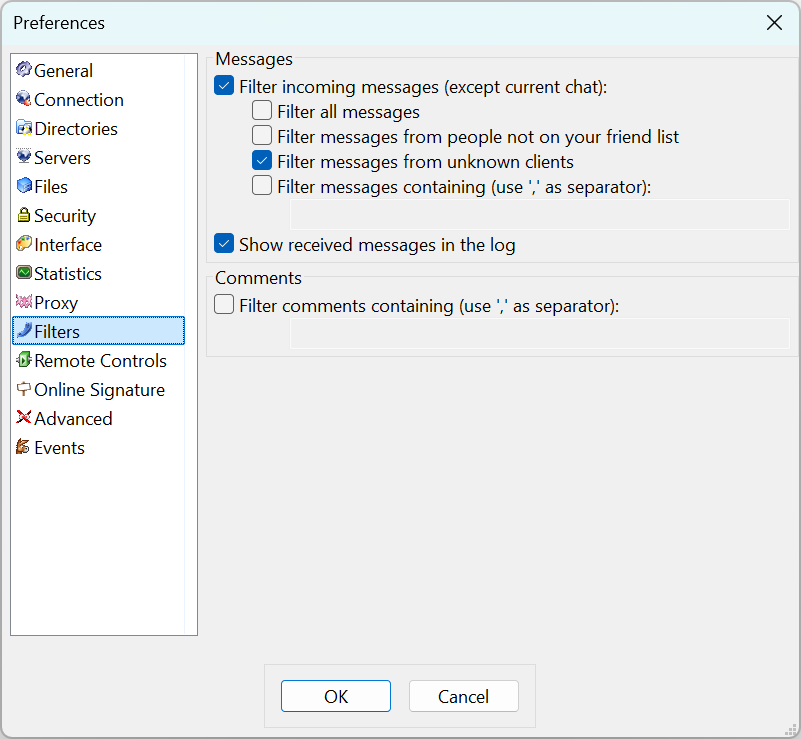

Filters

Options for filtering incoming chat messages and file comments.

Messages

Setting	Description
Filter incoming messages (except current chat)	Master switch for the next four filters: while it is unticked they are greyed out and none of them applies. Messages from a client you are currently chatting with are never filtered.
Filter all messages	Ignore all incoming messages. While ticked, the three filters below are greyed out.
Filter messages from people not on your friend list	Ignore all messages from users not in the friends list.
Filter messages from unknown clients	Ignore messages from clients that have not sent a user name. Enabled by default.
Filter messages containing (use ',' as separator)	Ignore messages containing any of the comma-separated strings listed in the box. Each string is trimmed of surrounding spaces and matched case-insensitively as a substring of the message; a value of exactly * filters every message.
Enable advanced spam filter	Block unsolicited links and repeated unanswered messages from people not on your friend list. On by default. Works even when the master switch above is unticked. Greyed out in amulegui when the core is too old to support it.
Require a CAPTCHA for first messages from non-friends	Hold back the first message from someone who is not a friend until the sender solves a CAPTCHA. On by default. Clients without CAPTCHA support cannot start a chat with you. Works only while Enable advanced spam filter is ticked. See Messages.
Show received messages in the log	Include the text of accepted incoming messages in the aMule log. Filtered messages are only logged as Message filtered from …, without their text.

Comments

Setting	Description
Filter comments containing (use ',' as separator)	Hide file comments containing any of the comma-separated strings listed in the box. It also applies to notes found on Kad.

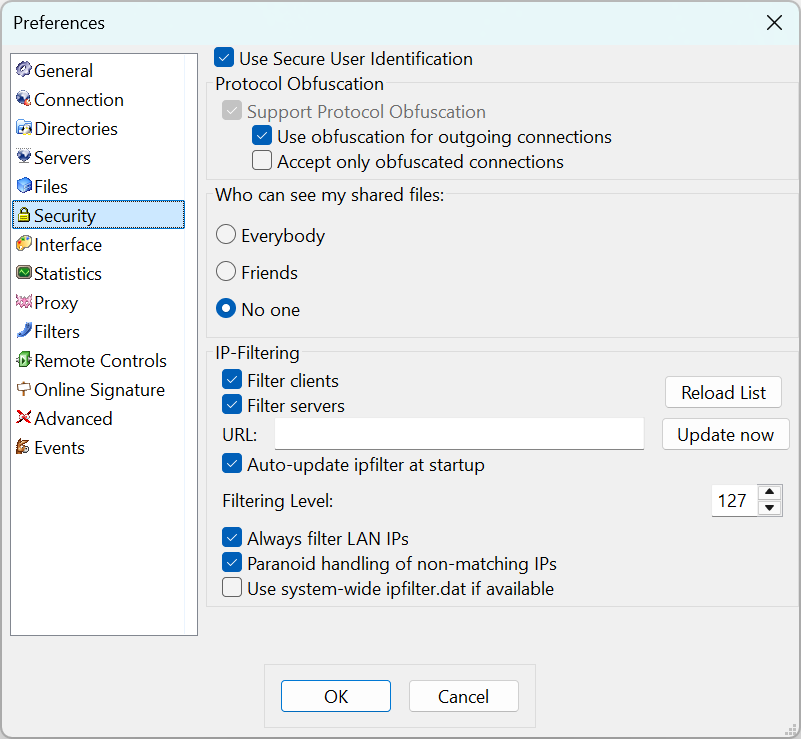

Security

Options for aMule's security features, including protocol obfuscation and IP filtering.

Setting	Description
Use Secure User Identification	Use the Secure User Identification protocol when identifying to other clients. Recommended.

Protocol Obfuscation

Setting	Description
Support Protocol Obfuscation	Enable protocol obfuscation, which disguises aMule traffic to make it harder to detect and throttle.
Use obfuscation for outgoing connections	Initiate outgoing connections using obfuscation when supported by the remote client.
Accept only obfuscated connections	Reject incoming connections that are not obfuscated.

The three checkboxes depend on each other: Use obfuscation for outgoing connections needs Support Protocol Obfuscation, and Accept only obfuscated connections needs Use obfuscation for outgoing connections. While a dependent option is ticked, the one it relies on is locked and cannot be unticked. Changing protocol obfuscation support requires restarting aMule.

Setting	Description
Who can see my shared files	Controls who can browse your shared files: Everybody, Friends, or No one. Hiding them from everyone is recommended.

IP-Filtering

The IP filter blocks all traffic to and from a configurable list of IP addresses and ranges, read from ipfilter.dat and ipfilter_static.dat. Each option below maps to a key in amule.conf.

Setting	Description
Filter clients	Apply the IP filter to client connections (IpFilterClients).
Filter servers	Apply the IP filter to server connections (IpFilterServers).
Reload List	Reload ipfilter.dat and ipfilter_static.dat from disk and re-check all active connections.
URL	URL of the ipfilter.dat file to download (IPFilterURL).
Update now	Download the filter from the URL immediately.
Auto-update ipfilter at startup	Download an updated filter from the URL every time aMule starts (IPFilterAutoLoad).
Filtering Level	Filter level, 0–255 (default 127). A range is blocked when its access level is strictly less than this value, so a higher level blocks more ranges and a lower level blocks fewer (FilterLevel).
Always filter LAN IPs	Always block IPs that claim to be in a local LAN range (FilterLanIPs). This also applies to servers: untick it to use a server on this machine or your LAN. See always-filtered ranges.
Paranoid handling of non-matching IPs	Reject a packet if the client IP differs from the IP it was received from. Use with caution (ParanoidFiltering).
Use system-wide ipfilter.dat if available	If the local ipfilter.dat cannot be loaded, fall back to the system-wide file (IPFilterSystem).

aMule always blocks the reserved RFC 3330 IP ranges regardless of these settings; see always-filtered ranges.

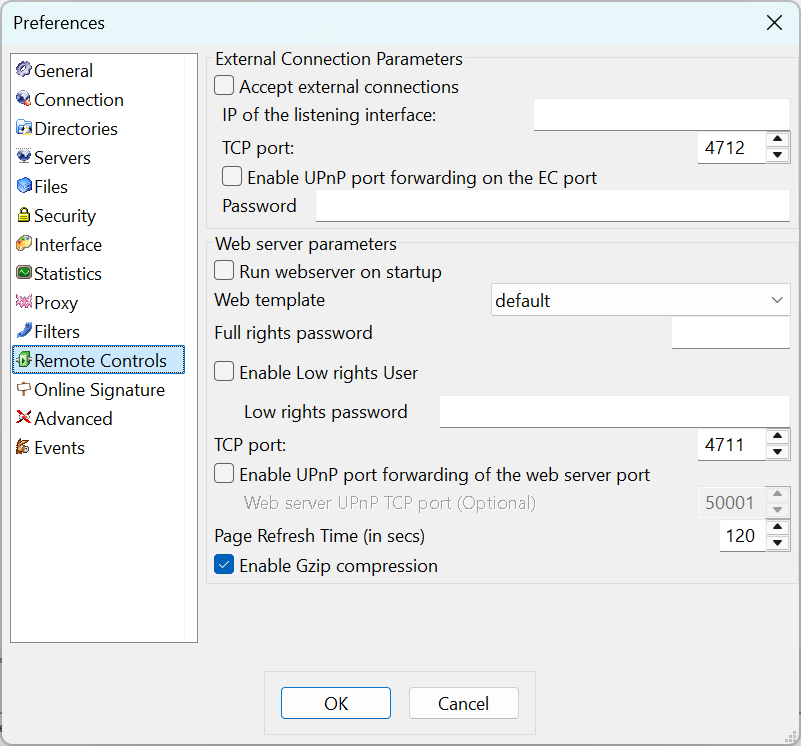

Remote Controls

Options for controlling aMule remotely: External Connections (used by amulegui, amuleapi, amulecmd and the legacy amuleweb), the built-in amuleapi daemon, and the legacy web server.

informació

The web server and amuleapi connect to the core over External Connections, so both require Accept external connections to be enabled. If you tick either while External Connections are off, aMule shows "The web server and aMule API require external connections to be enabled." and reverts the checkbox; unticking Accept external connections while one of them is enabled clears it too.

nota

In amulegui the whole External Connection Parameters group is hidden, together with the Folders remote clients may use group and the web-server and EC UPnP controls: these settings belong to the core and are configured on the machine running it.

External Connection Parameters

Setting	Description
Accept external connections	Allow aMule to accept External Connection requests from remote applications (amulegui, amuleapi, amulecmd, amuleweb).
IP of the listening interface	IP address of the interface that listens for external connections, in a.b.c.d format (ECAddress, default 127.0.0.1). Choose from the drop-down (127.0.0.1, 0.0.0.0 and the local IPv4 addresses) or type one in. Empty or 0.0.0.0 means any interface.
Bind to network interface (empty for any)	Bind the EC listener to a single interface, given by name (e.g. tun0, eth0, en0) or index — not an IP address (ECNetworkInterface). The drop-down lists the local interfaces. Empty = all interfaces.
TCP port	TCP port where aMule listens for external connections (ECPort, 1025–65535, default 4712).
Enable UPnP port forwarding on the EC port	Ask a UPnP-capable router to forward the external-connection port.
Password	Password remote applications must supply to connect. OK is refused while external connections are enabled without a password.
Require encrypted connections (rejects clients that cannot encrypt)	Require EC connections to be encrypted and reject any client that cannot encrypt (RequireEncryption).

Changing the EC port, the EC listening address or interface, or Accept external connections requires restarting aMule.

nota

The EC authentication-throttle keys AuthFailureWindowSeconds, AuthFailureThreshold and AuthLockoutSeconds have no field in this panel — they are edited directly in the [ExternalConnect] section of amule.conf.

Folders remote clients may use

Folders inside which remote clients (amulegui, amuleapi and other External Connections clients) may set the incoming, temporary, shared and category folders, including any sub-folder. The list is empty by default, so remote clients cannot set any folder; folders already configured keep working. This group is shown only in the monolithic amule; with amuled, edit allowed-remote-dirs.dat instead. See Changing Folders from a Remote Client.

Setting	Description
Folder list	The allowed folders.
Path field	Absolute path of a folder to add, e.g. /home/user/aMule. Use Browse to choose it.
Add	Add the path to the list. A relative path is refused.
Remove	Remove the selected folder from the list.

aMule API server parameters

Controls the built-in amuleapi daemon (the modern REST API and Web UI), which aMule can auto-start as a child process. See the [AmuleApi] section of amule.conf for the stored keys.

Setting	Description
Run amuleapi (REST API) on startup	Auto-start amuleapi when aMule launches (Enabled).
HTTP port	HTTP port on which amuleapi serves the REST API and Web UI (HttpPort). Default: 4713.
IP of the listening interface	Address amuleapi listens on (BindAddress). 127.0.0.1 = loopback only.
Admin password	Full-access (admin) password. Stored passwords cannot be shown, so leaving this empty keeps the current one. The label next to it reads A password is set. or No password set.
Enable guest access	Enable a read-only guest role. Turning this off clears the stored guest password.
Guest password	Read-only (guest) password, with its own A password is set. / No password set. label. Same rules as the admin password: leave empty to keep the current one. Enabled only while Enable guest access is ticked; OK is refused if guest access is enabled but no guest password is set or stored.

Changing Run amuleapi (REST API) on startup, the HTTP port or the listening IP requires restarting aMule (aMule only prompts for it when Accept external connections is ticked and an EC password is set); password changes apply immediately.

Web server parameters

Deprecated

The amuleweb web server is deprecated. Consider running the amuleapi daemon and its Web UI instead. See amuleweb for details.

Setting	Description
Run webserver on startup (deprecated)	Start amuleweb automatically when aMule launches. Ticking it shows a reminder that the web server is deprecated and suggests the aMule API instead.
Web template	Template (skin) to use for the legacy WebUI.
Full rights password	Password for administration (full rights) access to amuleweb.
Enable Low rights User	Enable a low-privilege account for amuleweb with view-only access. A guest can log in only while this is ticked (or amuleweb runs with --allow-guest). A guest cannot add downloads.
Low rights password	Password for the view-only account.
TCP port	Port where amuleweb listens for incoming connections.
Enable UPnP port forwarding of the web server port	Ask a UPnP-capable router to forward the web server port.
Web server UPnP TCP port (Optional)	External TCP port to request for the web server via UPnP.
Page Refresh Time (in secs)	Time between page refreshes in amuleweb (seconds).
Enable Gzip compression	Gzip-compress the HTTP responses amuleweb sends to the browser.

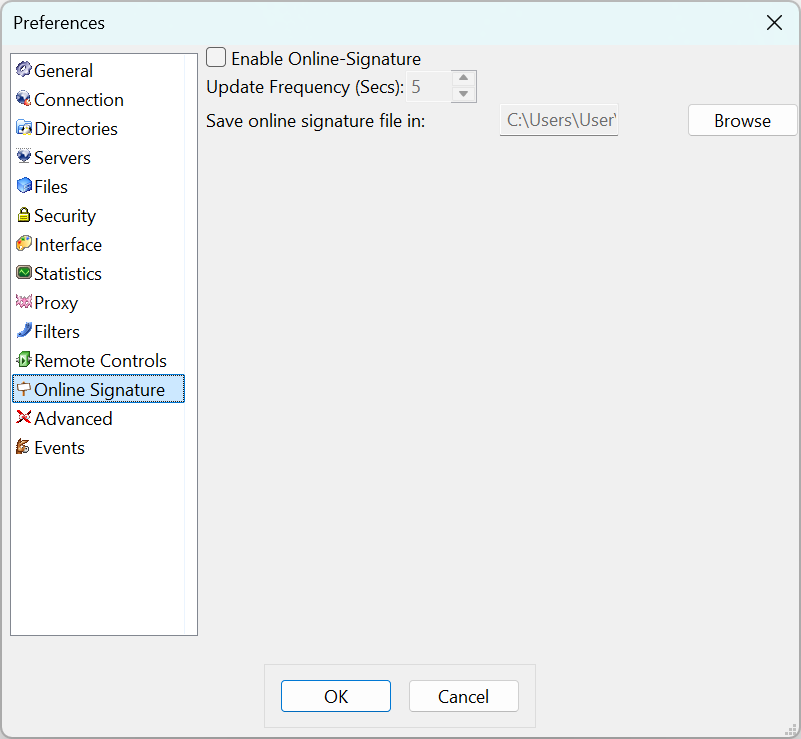

Online Signature

Options for the Online Signature feature used by cas and wxcas.

Setting	Description
Enable Online-Signature	Enable aMule to write the Online Signature file.
Update Frequency (Secs)	Interval (seconds, 0–600, default 5) between Online Signature updates.
Save online signature file in	Directory where the Online Signature file is written. Use the Browse button to select it. Read-only in amulegui: the folder can only be set on the core's machine.

Update Frequency and the directory are enabled only while Enable Online-Signature is ticked.

IP2Country

Options for the GeoIP country database that provides the country flags shown next to clients and servers. For an overview of the feature, its database providers and how updates work, see IP2Country (Country Flags).

nota

This panel appears only in builds compiled with GeoIP support (the standard release builds) and in amulegui; in amulegui it is also removed when the connected core has no GeoIP support. Country flags require a valid GeoIP country database — use Update now to download one.

The keys behind this panel are documented in the GeoIP section of amule.conf. Every control except Show country flags for clients sits inside the Database group box and is greyed out while that checkbox is off.

Setting	Description
Show country flags for clients	Enable GeoIP and display a country flag next to clients and servers (GeoIPEnabled). Requires a valid GeoIP country database.
Status line (read-only)	Unlabelled line showing the state of the database: Status: Loaded (x MiB) with its data attribution, Status: Failed to load - click 'Update now' to refresh. or Status: Not found - click 'Update now' to download. In amulegui it shows the attribution and the result of the last update.
Source	GeoIP database provider (GeoIPSource): DB-IP (free, no account), MaxMind GeoLite2 (free, account required), or Custom URL. The fields below change to match the chosen source, and an information text below the selector shows the source's terms: DB-IP needs no configuration (CC BY 4.0 licence); MaxMind needs a free account and licence key and must be refreshed at least every 30 days; for a custom URL, licence and attribution are the upstream's responsibility.
License key	MaxMind license key (GeoIPMaxMindLicense), entered in a masked field. Shown only when the source is MaxMind.
Download URL	URL of a custom GeoIP database (GeoIPCustomUrl). Shown only when the source is Custom URL; it must point to an .mmdb file or a .gz / .tar.gz containing one, and may include credentials (https://user:pass@host/...).
Update now	Download the database from the selected source immediately. In amule, a failed update shows an IP2Country update failed message; in amulegui the result appears in the status line.
Auto-update on startup and weekly	At every startup and weekly while aMule is running (and, in amule, when you enable Show country flags for clients), download a newer GeoIP database if there is one (GeoIPAutoUpdate). A failed update keeps the working database. Only while Show country flags for clients is enabled.

In amule and amulegui, clicking OK after changing the source, or the selected source's license key or download URL (with GeoIP enabled), downloads the database from the new source automatically.

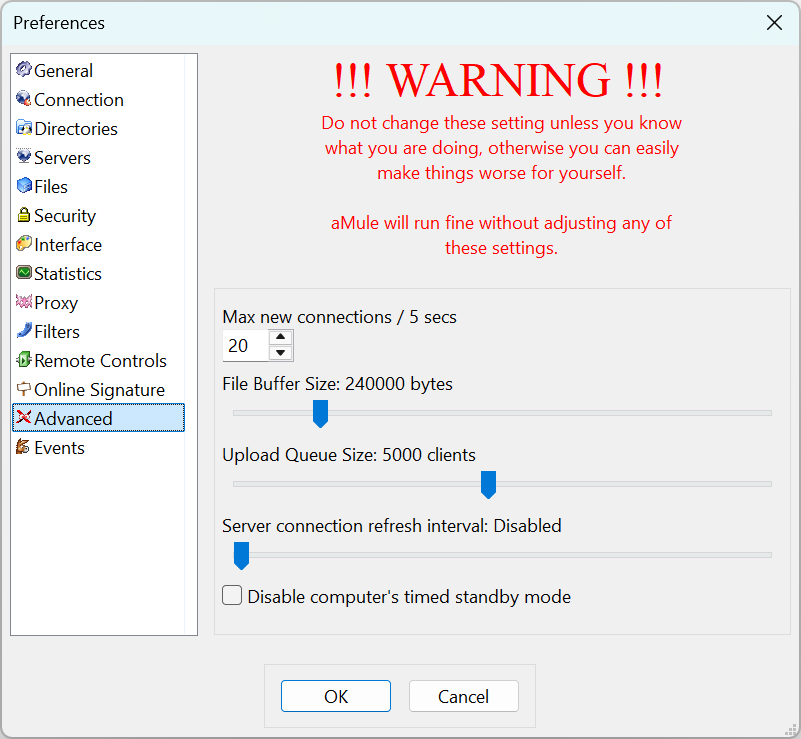

Advanced

Advanced options for aMule's core engine. A !!! WARNING !!! banner reminds you that wrong values here can harm aMule's performance — change them only if you understand their effect.

Setting	Description
Max new connections / 5 secs	Maximum number of new connections to establish per 5-second window (20–500, default 50).
Concurrent Kad source lookups	Maximum number of concurrent Kad source searches (KadMaxSourceSearches). Range 5–50, default 30.
Kad source re-search interval (minutes)	Minimum interval between Kad source re-asks (KadSourceReaskMinutes). Range 30–60, default 30.
Source re-ask interval (minutes)	Minimum interval before re-asking a source for a file (SourceReaskMinutes). Range 15–60, default 15.
File Buffer Size	Maximum amount of memory (bytes) each file can use for write buffering. Slider in steps of 15000 bytes, from 15000 to 1500000; default 240000.
Use MMAP: memory-mapped file access (lower memory use)	Map part files into memory instead of buffering them on the heap, lowering the process memory footprint (MMapEnabled). May reduce download speed on some disks. Off by default. This checkbox appears only when the core supports memory mapping (not on Windows).
Upload Queue Size	Maximum number of clients that can be queued in the upload queue. Slider in steps of 100 clients, from 500 to 10000; default 5000.
Server connection refresh interval	Ping interval to the server (minutes, 0–30), to avoid being disconnected due to inactivity. At 0 the label reads Disabled and the keep-alive ping is off (default).
Disable computer's timed standby mode	Prevent the computer from entering automatic standby/sleep while aMule is downloading. Available only on Windows and macOS; greyed out on Linux, BSD and in amulegui.
Reset page to defaults	Reset every setting on the Advanced page to its default value, after a confirmation prompt. Only the fields are reset: OK saves the defaults, Cancel discards them. This button is shown only on this page.

Debugging

Advanced options for logging and debugging aMule.

nota

This section only appears in aMule builds compiled with debugging enabled (__DEBUG__). It is not present in standard release builds used by most users.

Setting	Description
Enable Verbose Debug-Logging.	Write extra debug output to the aMule log (VerboseDebug).
Only to Logfile	Write verbose debug output only to the log file, not to the on-screen log (VerboseDebugLogfile).
Message Categories	Once verbose logging is enabled, select exactly which categories of debug messages to include.

This section is intended for developers and advanced troubleshooting only. The options will not be described further here.
