Statistics

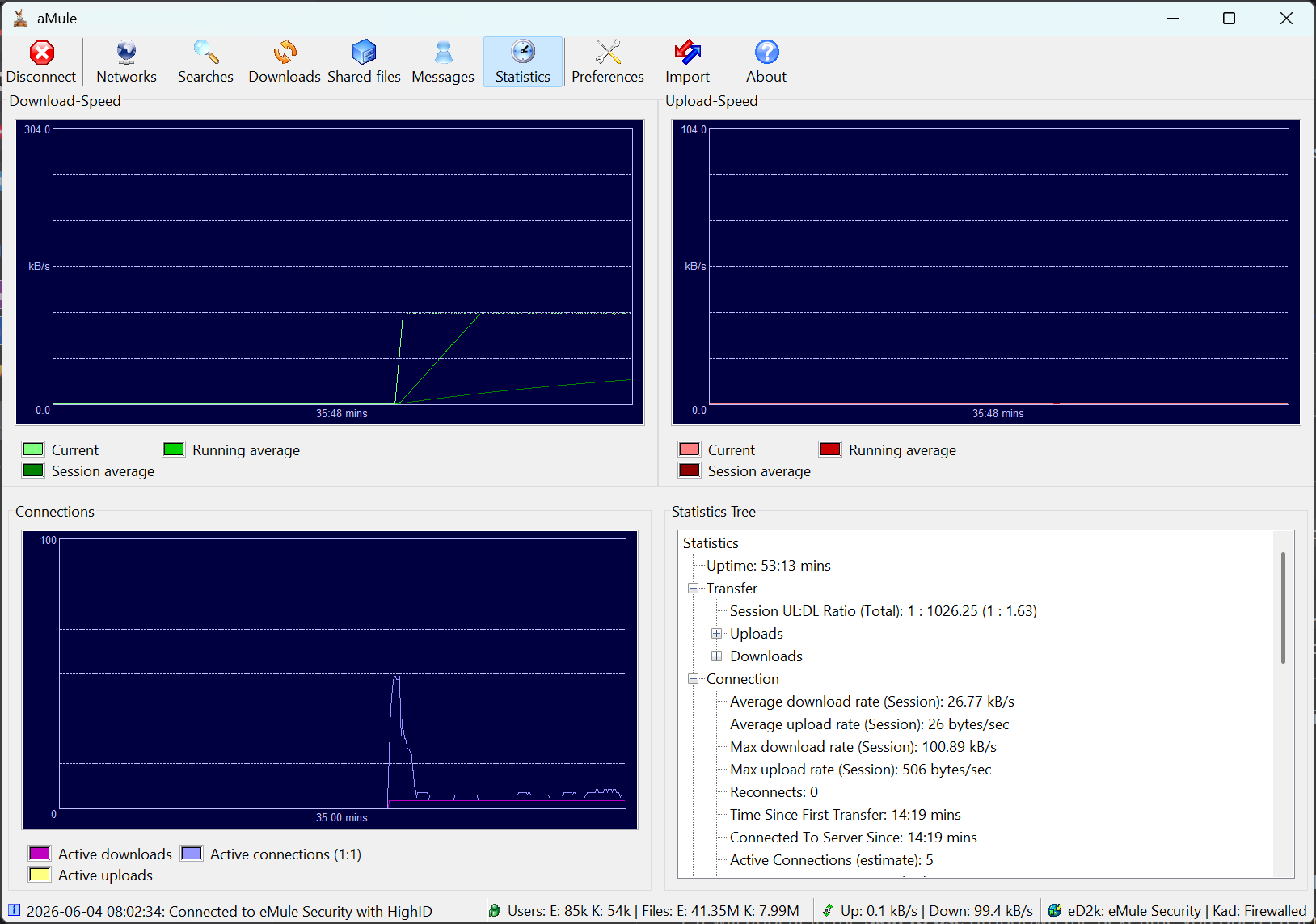

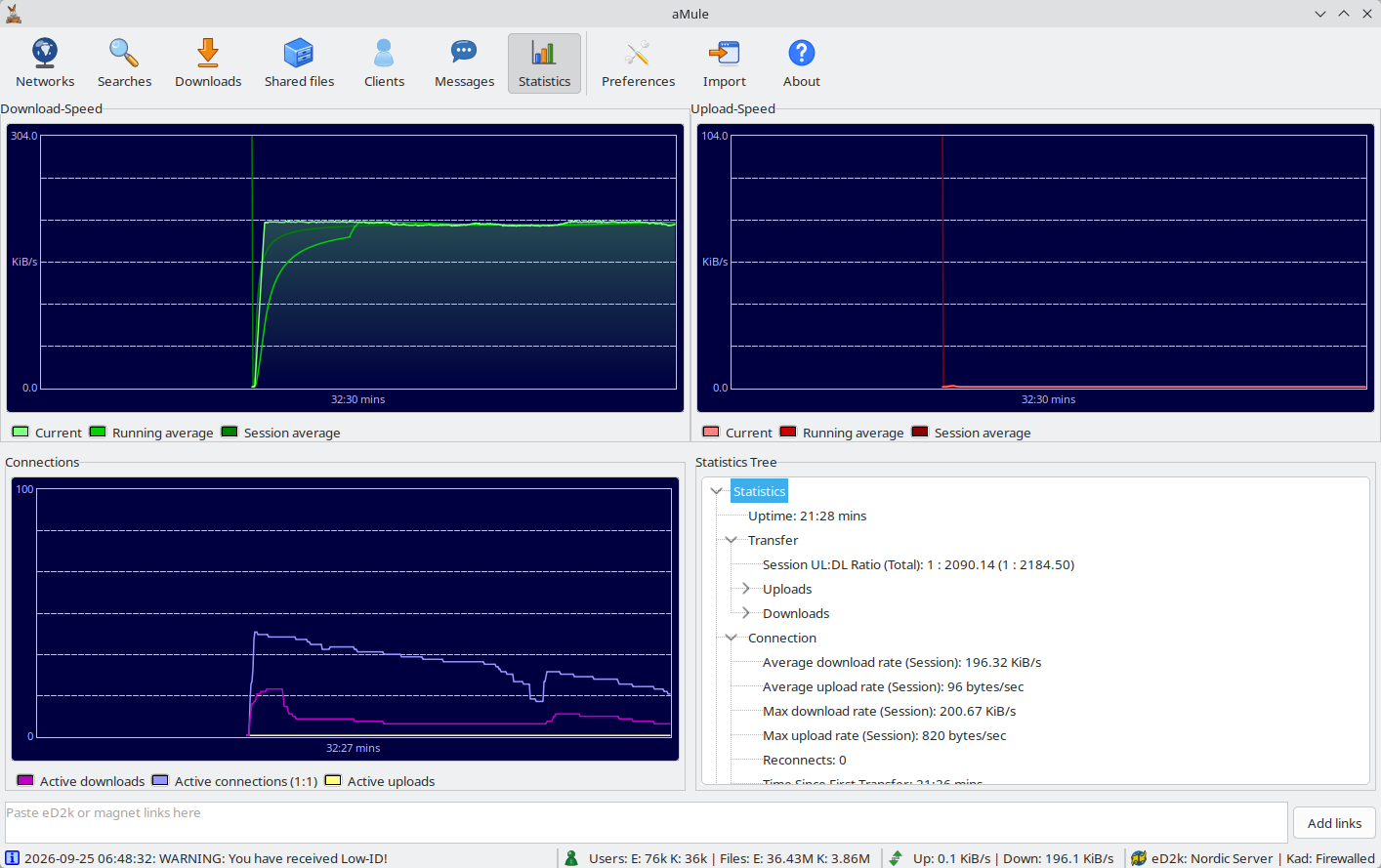

The Statistics window shows detailed data about the current aMule session: speed graphs, transfer totals, connection metrics, client population, and server statistics.
The window is divided into two main areas:
- Graphs (top portion) — visual speed and connection history for the last few minutes.
- Statistics tree (bottom right) — a hierarchical breakdown of all numeric statistics.
Graphs
The three graphs each update in real time.
tip
Make sure you understand how to read the graphs: the X axis represents time (newest data on the right), and the Y axis is the measured value. The "average" lines smooth out short-term spikes.
Each graph has a legend below it with three labelled colour swatches identifying its lines.

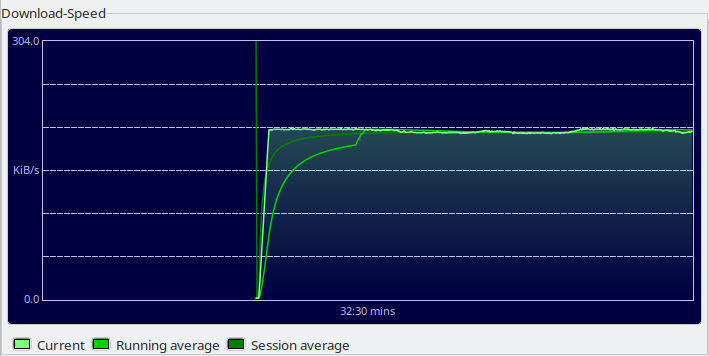

Download Speed
The top-left graph shows download speed over recent minutes:
| Legend | Colour | Meaning |
|---|---|---|
| Current | Light green | Current download speed |
| Running average | Medium green | Average download speed over the last X minutes (configured in Preferences → Statistics → Time for average graph) |
| Session average | Dark green | Average download speed since aMule was started |
Upload Speed
The top-right graph shows upload speed:
| Legend | Colour | Meaning |
|---|---|---|
| Current | Light red | Current upload speed |
| Running average | Medium red | Average upload speed over the last X minutes |
| Session average | Dark red | Average upload speed since aMule was started |

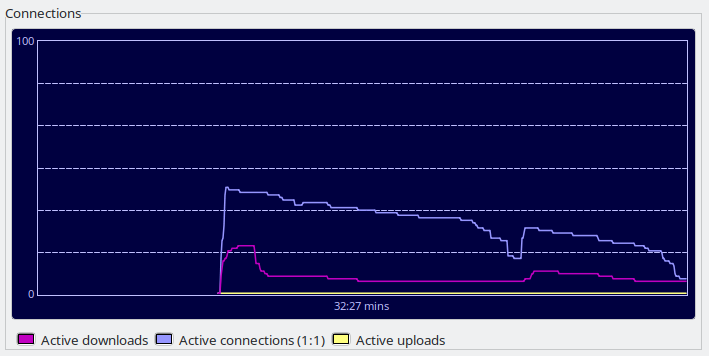

Connections
The bottom-left graph shows the number of active connections:
| Legend | Colour | Meaning |
|---|---|---|
| Active downloads | Magenta | Connections actively downloading (clients uploading to you) |
| Active connections | Light blue | All active connections combined |
| Active uploads | Yellow | Connections actively uploading (you uploading to clients) |
The Active connections legend label includes a scale factor such as (1:3). This is the vertical (Y axis) scale of the graph, not a usage ratio: it indicates the axis has been scaled 3× because the peak number of connections exceeded the configured graph scale (Preferences → Statistics → Connections Graph Scale, default 100). The label stays at (1:1) until the peak rises above that scale.

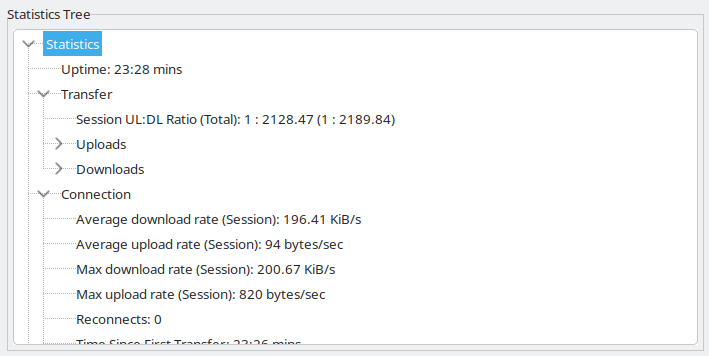

Statistics Tree
The bottom-right panel contains a hierarchical tree of detailed statistics.
Items whose value is not yet known may be hidden until a valid value is available.
Statistics
| Item | Description |
|---|---|
| Uptime | How long aMule has been running |
Transfer
Uploads
| Item | Description |
|---|---|
| Uploaded Data (Session (Total)) | Data uploaded this session; all-time total in brackets |
| (client list) | Per-client-application breakdown of uploaded data |
| Total Overhead (Packets) | Combined control-packet overhead (sum of the four types below). Shown as bytes with the packet count in brackets |
| File Request Overhead (Packets) | Bandwidth used by file-request control packets |
| Source Exchange Overhead (Packets) | Bandwidth used by source-exchange control packets |
| Server Overhead (Packets) | Bandwidth used by server communication control packets |
| Kad Overhead (Packets) | Bandwidth used by Kademlia communication control packets |
| Crypt overhead (UDP) | Bandwidth used by protocol obfuscation on UDP packets |
| Active Uploads | Number of clients you are currently uploading to (upload slots in use) |
| Waiting Uploads | Number of clients currently in your upload queue |
| Total successful upload sessions | Finished uploads this session that transferred at least one byte to the client |
| Total failed upload sessions | Finished uploads this session that ended without transferring any data |
| Average upload time | Average duration of a successful upload (time a client spent in your upload slot) |
Downloads
| Item | Description |
|---|---|
| Downloaded Data (Session (Total)) | Data downloaded this session; all-time total in brackets |
| (client list) | Per-client-application breakdown of downloaded data |
| Total Overhead (Packets) | Combined control-packet overhead (sum of the four types below). Shown as bytes with the packet count in brackets |
| File Request Overhead (Packets) | Bandwidth used by download file-request control packets |
| Source Exchange Overhead (Packets) | Bandwidth used by download source-exchange control packets |
| Server Overhead (Packets) | Bandwidth used by download server communication control packets |
| Kad Overhead (Packets) | Bandwidth used by Kademlia communication control packets |
| Crypt overhead (UDP) | Bandwidth used by protocol obfuscation on UDP packets |
| Found Sources | Total sources found this session, broken down by origin (sub-tree below) |
| Active Downloads (chunks) | Number of clients currently uploading to you (sources in the downloading state) |
The Found Sources item expands into a sub-tree counting sources by origin (each origin also shows its share of the total as a percentage):
| Origin | Description |
|---|---|
| Local Server | Sources found through the server you are connected to |
| Remote Server | Sources found through a server other than the one you are connected to |
| Kad | Sources found through the Kademlia network |
| Source Exchange | Sources found through source exchange |
| Passive | Sources found passively |
| Link | Sources found from an eD2k link |
| Source Seeds | Sources found from saved source seeds |
| Search Result | Sources found from a search result |
| Unknown | Sources found through unclassified methods |
Session UL:DL Ratio (Total)
| Item | Description |
|---|---|
| Session UL:DL Ratio (Total) | Normalized upload-to-download ratio for the session (the smaller side reduced to 1), with the all-time ratio in brackets. Shows "Not available" until data has been transferred in both directions |
Connection
| Item | Description |
|---|---|
| Average download rate (Session) | Average download speed this session |
| Average upload rate (Session) | Average upload speed this session |
| Max download rate (Session) | Peak download speed this session |
| Max upload rate (Session) | Peak upload speed this session |
| Reconnects | Number of successful server connections minus one (i.e., number of reconnections) |
| Time Since First Transfer | Time elapsed since the first transfer (upload or download) began this session |
| Connected To Server Since | Time elapsed since the last successful server connection; 0 if disconnected |
| Active Connections (estimate) | Estimated number of currently open connections (based on the open socket count) |
| Max Connection Limit Reached | How many times the connection limit (set in Preferences → Connection) was reached, with the date/time it last happened. Shows "Never" if it has not occurred |
| Average Connections (estimate) | Running average of the number of open connections during the session |
| Peak Connections (estimate) | Highest number of simultaneous open connections reached this session |
Clients
| Item | Description |
|---|---|
| Unknown | Clients whose application is unknown |
| Filtered | Clients rejected by the IP filter |
| Banned | Clients currently banned |
| Total / Known | Total number of clients and how many of them are of a known application |
| (per-application list) | Number of clients per application (aMule, eMule, etc.), sorted by popularity. Percentage of total shown in brackets |
| (per-version list) | Number of clients per version per application. aMule, Hydranode and MLDonkey also break down into Version and Operating System sub-trees |
Servers
These counters summarise the eD2k server list managed in the Networks window.
| Item | Description |
|---|---|
| Working Servers | Number of servers known to be online |
| Failed Servers | Number of servers that could not be reached |
| Total | Total known servers |
| Deleted Servers | Servers deleted this session |
| Filtered Servers | Servers filtered by the IP filter |
| Users on Working Servers | Sum of users connected to all known working servers |
| Files on Working Servers | Sum of files available through all known working servers |
| Total Users | Sum of users connected to all known servers |
| Total Files | Sum of files available through all known servers (including non-working ones) |
| Server Occupation | Percentage of maximum server capacity currently occupied by connected clients |
Shared Files
These figures summarise your Shared Files list.
| Item | Description |
|---|---|
| Number of Shared Files | Total number of files you are sharing |
| Total size of Shared Files | Combined size of all shared files |
| Average file size | Average size of your shared files |
