wxcas / cas — Statistics Tools

wxCAS and CAS are external statistics tools that read aMule's online signature file (~/.aMule/amulesig.dat) and produce status output in various formats. They are shipped with aMule and serve users who want to embed aMule statistics in a website, forum signature, or terminal dashboard.

Binary	Interface	Output
wxcas	Graphical (wxWidgets)	Graphical display of the same data
cas	Command-line	Console text, PNG image, HTML page

Prerequisites

Both tools read ~/.aMule/amulesig.dat, which aMule only generates when Online Signature is enabled:

1. Open aMule → Preferences → Online Signature.
2. Check Enable Online Signature.
3. Restart aMule (or wait for the next update cycle).

The same options can be set directly in amule.conf via the OnlineSignature, OnlineSignatureUpdate and OSDirectory keys.

amulesig.dat is updated periodically while aMule runs. The file must exist for wxcas or cas to produce any output. If you change the signature directory (the Save online signature file in preference, or the OSDirectory key), point the wxcas amulesig.dat directory setting and cas -c DIR at the same location.

For the full format specification of amulesig.dat, see the amulesig.dat reference in the Configuration Files reference.

WxCAS — Graphical Statistics

wxcas provides a graphical window displaying the same statistics as cas. It is aimed at desktop users who want to monitor aMule status without a terminal.

Launch with:

wxcas

wxcas does not accept command-line arguments; all configuration is done through its Preferences dialog.

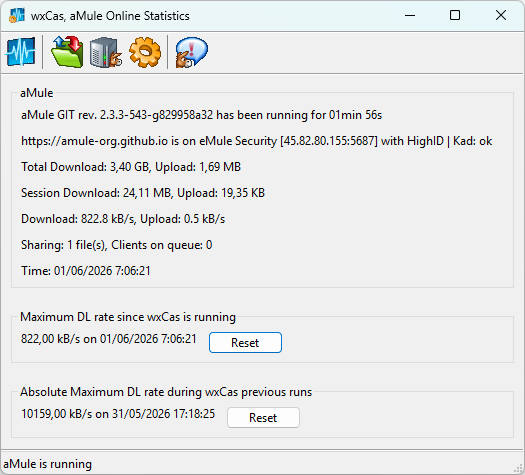

wxcas polls amulesig.dat periodically and refreshes the display automatically. The main window shows:

• aMule panel: the seven status lines (version/uptime, server connection, totals, session totals, current rates, shared files/queue, local time).
• Download records panel: peak download rate for the current session and the all-time record across all previous sessions.
• System panel (Linux only): system load averages (1, 5, 15 minutes) and system uptime.

Image Generation

wxcas can generate a statistics image automatically at every refresh cycle. Supported formats: PNG, JPG, BMP. The output directory is configurable.

Default output path: ~/aMule-online-sign.{png,jpg,bmp} (depending on the configured format). This is distinct from the cas default of ~/.aMule/aMule-online-sign.png.

FTP Upload

When auto image generation is enabled, wxcas can upload the image to an FTP server at a configurable interval. Configure the FTP URL, path, username and password from Preferences.

Preferences

Key settings available in the Preferences dialog.

Setting	Description	Default
amulesig.dat directory	Directory where aMule writes amulesig.dat	~/.aMule
Refresh rate	How often to re-read amulesig.dat, in seconds (1–3600)	5
Generate stat image	Automatically save a statistics image on each refresh	disabled
Image format	PNG, JPG, or BMP	PNG
Image directory	Where to save the auto-generated image	~/
FTP upload	Periodically upload the image to an FTP server	disabled
FTP update rate	Upload interval in minutes (1–1440)	10

CAS — C aMule Statistics

cas reads amulesig.dat and can produce:

• A formatted text summary on the console.
• A PNG image with statistics overlaid on a background template.
• An HTML page with all statistics.

Console Output Example

Running cas with no arguments prints a status summary similar to:

aMule 2.3.3 has been running for 1 D 00 h
user is connected to server.example.com [81.84.97.64:4661] with HighID | Kad: ok
Total Download: 171.36 GB, Upload: 188.96 GB
Session Download: 475.42 MB, Upload: 832.46 MB
Download: 2.3 kB/s, Upload: 10.0 kB/s
Sharing: 98 file(s), Clients on queue: 237
Time: Jan 01 2024, 12:00

Command-Line Options

Option	Description
-o, --picture, -P	Generate the statistics image (requires libgd at compile time)
-p, --html, -H	Generate an HTML statistics page (and the image too if libgd is available)
-c, --config-dir DIR	Read amulesig.dat from DIR instead of the default aMule config directory
-h, --help	Show usage information

To write the output to a custom location, use the alias forms that accept a path: cas -P /path/to/image.png or cas -H /path/to/page.html. With the long options the path must be attached with =: cas --picture=/path/to/image.png, cas --html=/path/to/page.html. The plain -o and -p short flags take no argument and always use the default location.

Note that -c DIR only changes where amulesig.dat is read from; casrc and the generated output files always live in the default config directory (~/.aMule).

Image Generation

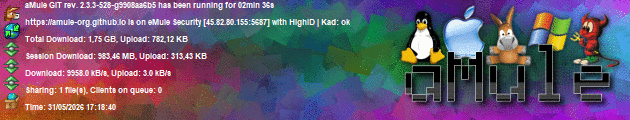

When run with the -o flag, cas generates a PNG image (~/.aMule/aMule-online-sign.png) by writing statistics text onto a configurable background image. This option is only available if cas was compiled with libgd support (see Compilation).

The image is produced by:

1. Loading the background image from source_image.
2. Drawing up to seven lines of status text at the positions defined by the placement lines in casrc, using the configured font and size. The status lines are taken directly from the corresponding lines of amulesig.dat.
3. Saving the result to ~/.aMule/, as aMule-online-sign.png when img_type is 0 or aMule-online-sign.jpg otherwise (the format and extension follow img_type in casrc).

Configuration is stored in ~/.aMule/casrc (see below).

casrc Configuration File

Location: ~/.aMule/casrc. This file is created the first time cas is run with the -o or -p switch, and can be edited manually.

On that first run, cas only creates the default casrc, prints a message asking you to edit it and rerun cas, and exits without generating the image or HTML page. Run cas -o / cas -p again (optionally after editing casrc) to actually produce the output.

casrc uses a key-value format. Each non-empty, non-comment line is either a parameter or a line placement definition; lines beginning with # are comments.

Parameter	Value	Description
font	Path to a .ttf file	Font used to draw text in the generated image
font_size	Floating-point number	Size of the font (e.g., 10.5)
source_image	Path to an image file	Background image on which the text is rendered
template	Path to an .html file	HTML template used to generate the HTML status page
img_type	0 or other integer	Output image format: 0 = PNG, any other value = JPG

After the parameters come the line placement definitions that say where each piece of status text is drawn. The first seven placement lines encountered are used (one per status line displayed); any additional lines are ignored. Each has the form <identifier> <x>,<y>,<enable>:

Field	Description
identifier	Any text label (cas ignores it; it is for human readability only)
x	Pixels from the left edge of the image to the start of the text
y	Pixels from the top edge of the image to the baseline of the text
enable	1 to draw this line; 0 to skip it

Example with all recognized options:

# cas config file

# font - full path to a TrueType font file
font /usr/share/fonts/corefonts/times.ttf

# font_size - font size in points
font_size 10.5

# source_image - background image to overlay text on
source_image /usr/share/cas/stat.png

# *_line - x,y,enabled (1=enabled, 0=disabled)
# Each line corresponds to one line of statistics text.
first_line   23,17,1
second_line  23,34,1
third_line   23,51,1
fourth_line  23,68,1
fifth_line   23,85,1
sixth_line   23,102,1
seventh_line 23,119,1

template /usr/share/cas/tmp.html

# img_type - 0 = PNG, any other value = JPG
img_type 0

Default system paths that cas uses when creating a new casrc:

Resource	Default path
Font	/usr/share/fonts/corefonts/times.ttf
Background image	/usr/share/cas/stat.png
HTML template	/usr/share/cas/tmp.html

HTML Statistics Page

Run cas with the -p/--html flag to generate ~/.aMule/aMule-online-sign.html, a full statistics page. It is produced from the HTML template referenced by the template parameter in casrc, with status values filled in from amulesig.dat.

Generated output files

cas creates the following files in ~/.aMule/, only after it has been run:

File	Created when	Description
casrc	First run with -o or -p	CAS configuration (font, background image, HTML template, line placement)
aMule-online-sign.png	Run with -o and casrc configured	PNG (or JPG) status image
aMule-online-sign.html	Run with -p	HTML status page

Troubleshooting

can't open file '/home/user/.aMule/amulesig.dat'

aMule has not generated the signature file. Fix:

1. In aMule: Preferences → Online Signature → Enable Online Signature.
2. Ensure aMule is actually running and connected (the file is only written while aMule is active).
3. If the file still does not appear, check that ~/.aMule/ is writable.
