Web UI

The Web UI is a complete browser interface served by amuleapi. It is not a cut-down remote panel: it covers the same ground as the desktop GUI — networks, searching, downloads, shared files, clients, messaging, statistics and preferences — and is the recommended replacement for amuleweb.

примечание

This functionality is available from aMule 3.1.0 onwards.

Accessing the Web UI​

amuleapi serves the Web UI itself, on its own HTTP port and the same origin as the REST API and the SSE stream. With a default configuration, open:

http://127.0.0.1:4713/

Replace 127.0.0.1 with the server's hostname or IP for remote access (put a reverse proxy in front to add TLS — see the amuleapi security model). To serve it under a path of a shared hostname (e.g. https://home.example.com/amule/), set BasePath.

The interface assets are found automatically when [Server] StaticRoot is empty: amuleapi discovers the installed amuleapi-static directory (searching the app bundle, the directory beside the binary, AMULEAPI_STATIC_DIR, and the resources directory). Set StaticRoot only to serve assets from a custom location.

Logging in is password-only — there is no username field. The password you enter selects your role: the admin password grants full access, the guest password (when one is set) grants read-only access. See Authentication for how the session token is issued and stored.

The aMule Web UI login screen

Sections​

The navigation bar exposes the following sections:

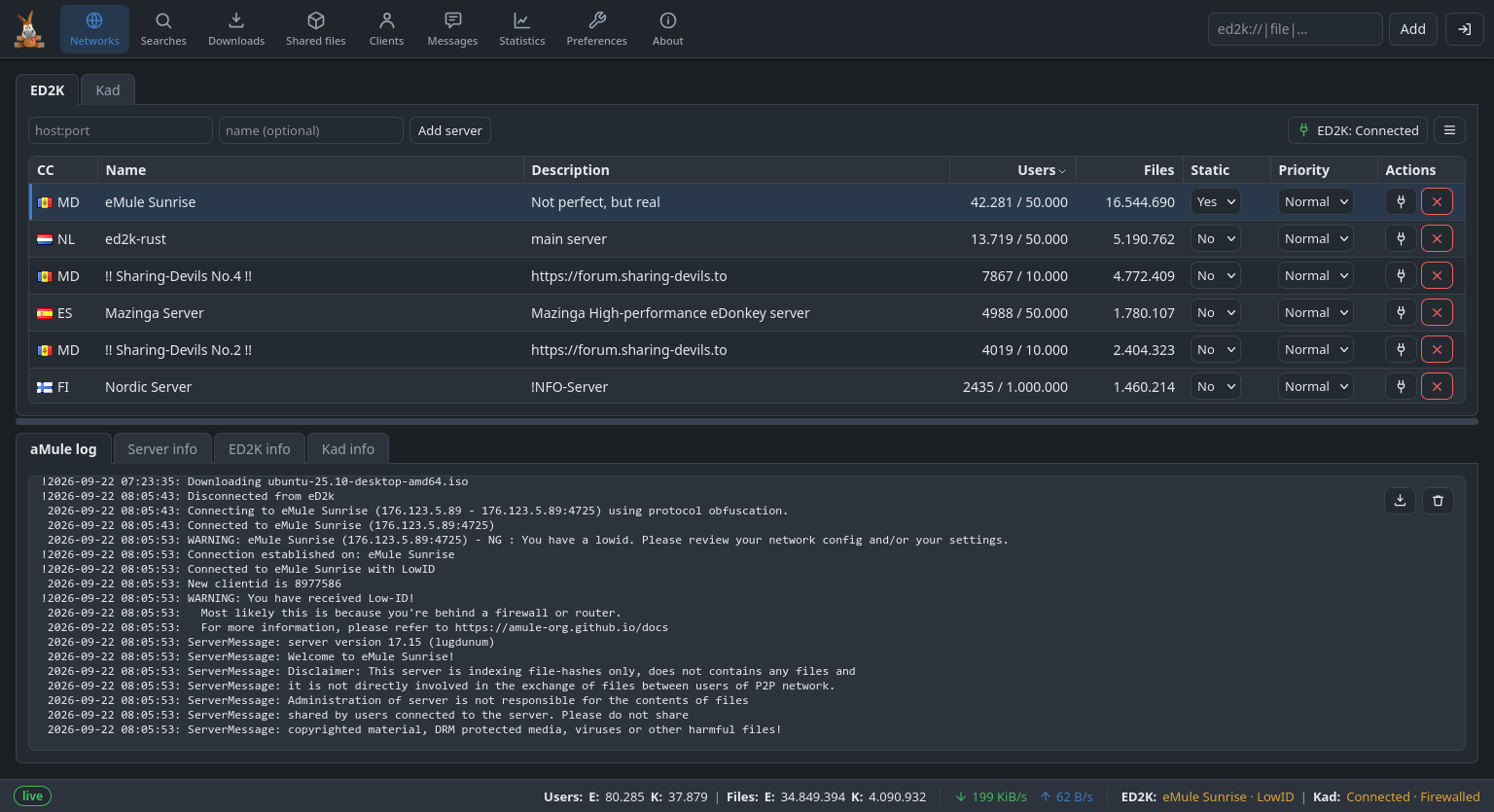

  • Networks — eD2k server and Kademlia status, with log panes for the aMule log, server info and the per-network info grids.

    The Networks section of the Web UI

  • Search — one tab per search, like the desktop's notebook, so several searches stay open at once.

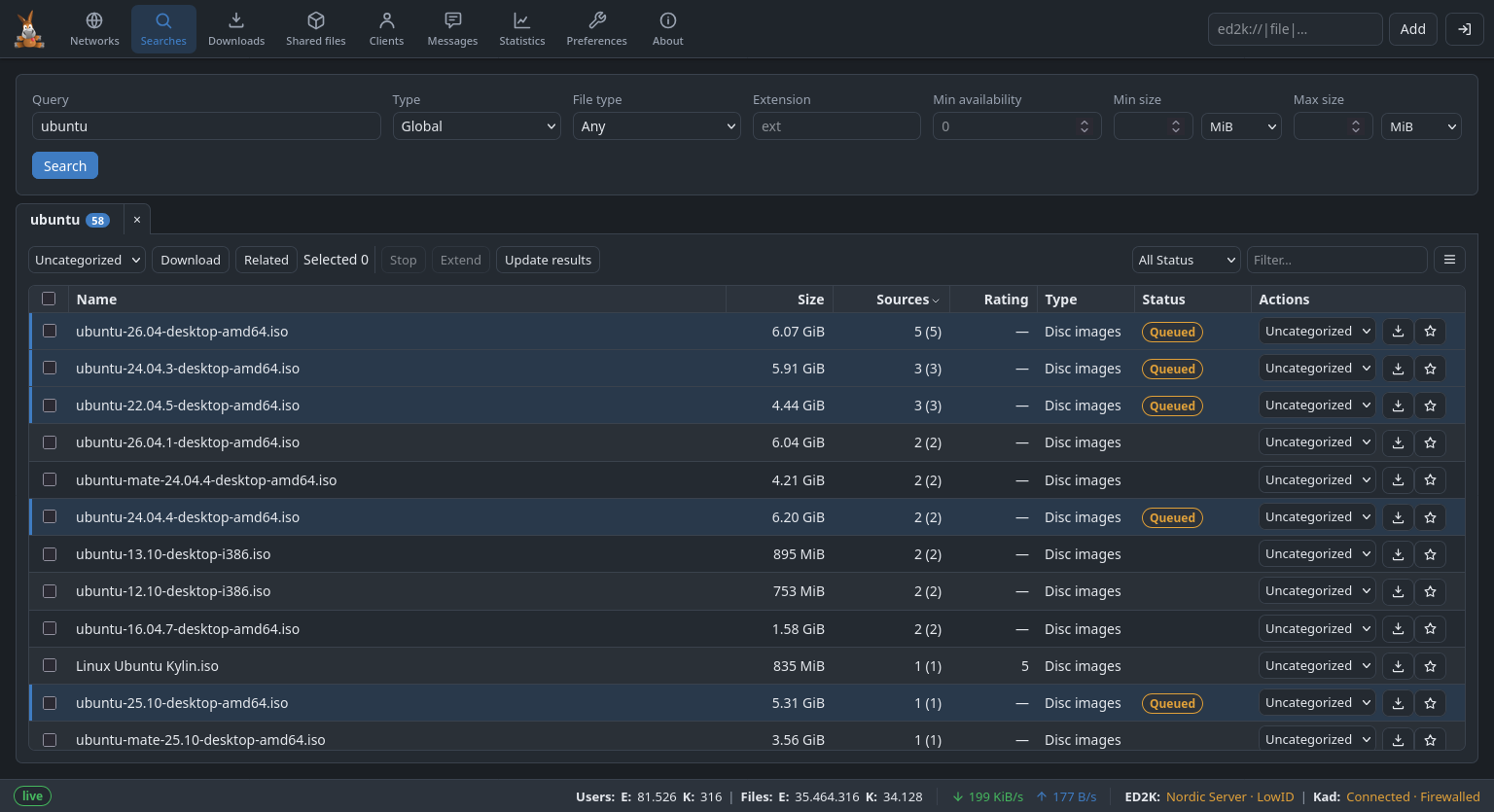

    The Search section of the Web UI

  • Downloads — the download queue with per-file controls. Category management is available inline here (it replaces the category tabs when Manage categories is toggled), and a detail panel below the list mirrors the desktop's File Details dialog for the selected download.

    The Downloads section of the Web UI

  • Shared Files — a sortable list of your shared files with per-file details.

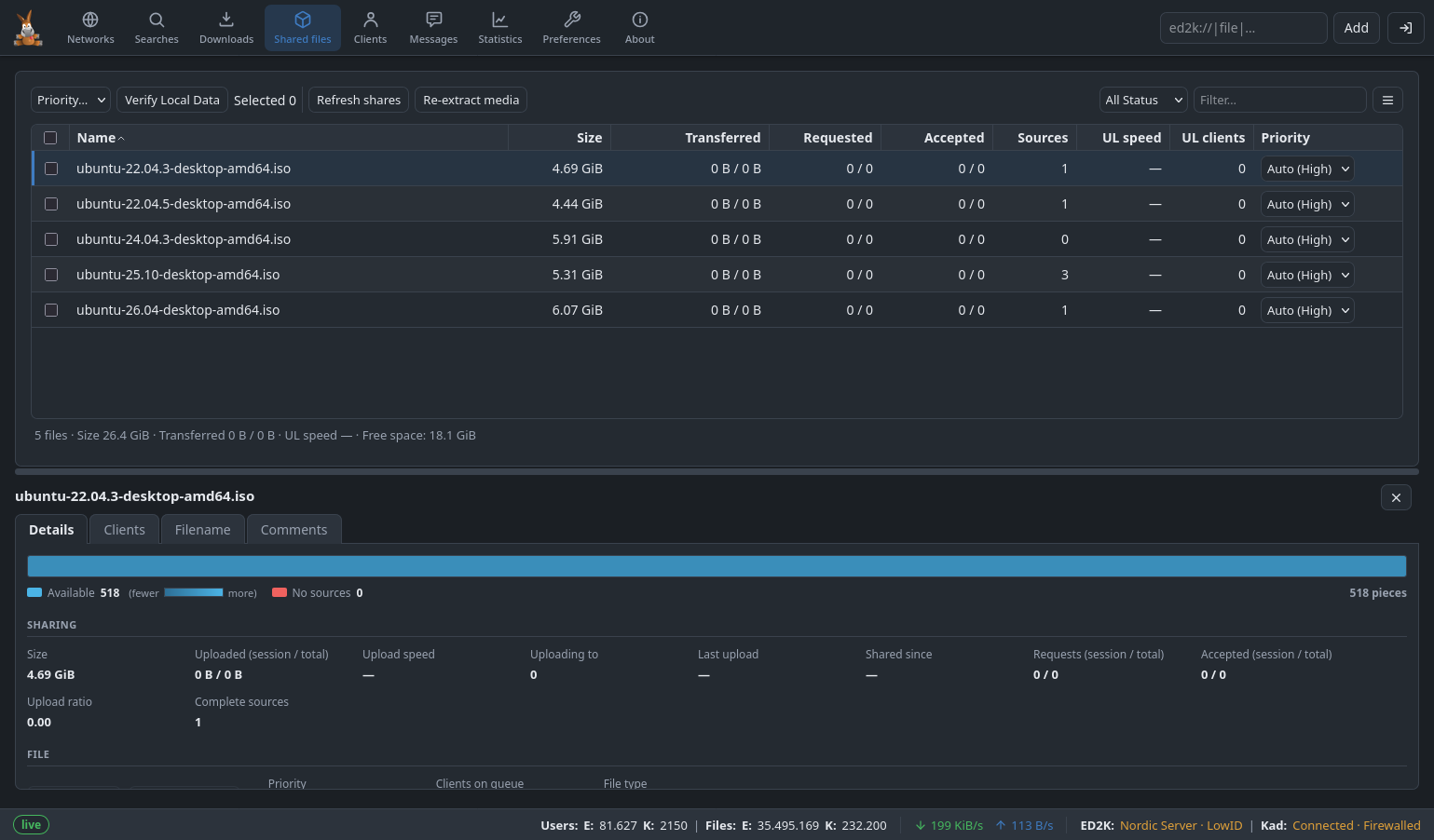

    The Shared Files section of the Web UI

  • Clients — active peers (all, downloads, or uploads) and the known-clients history, with a per-peer detail panel below the list that mirrors the desktop's Client Details dialog.

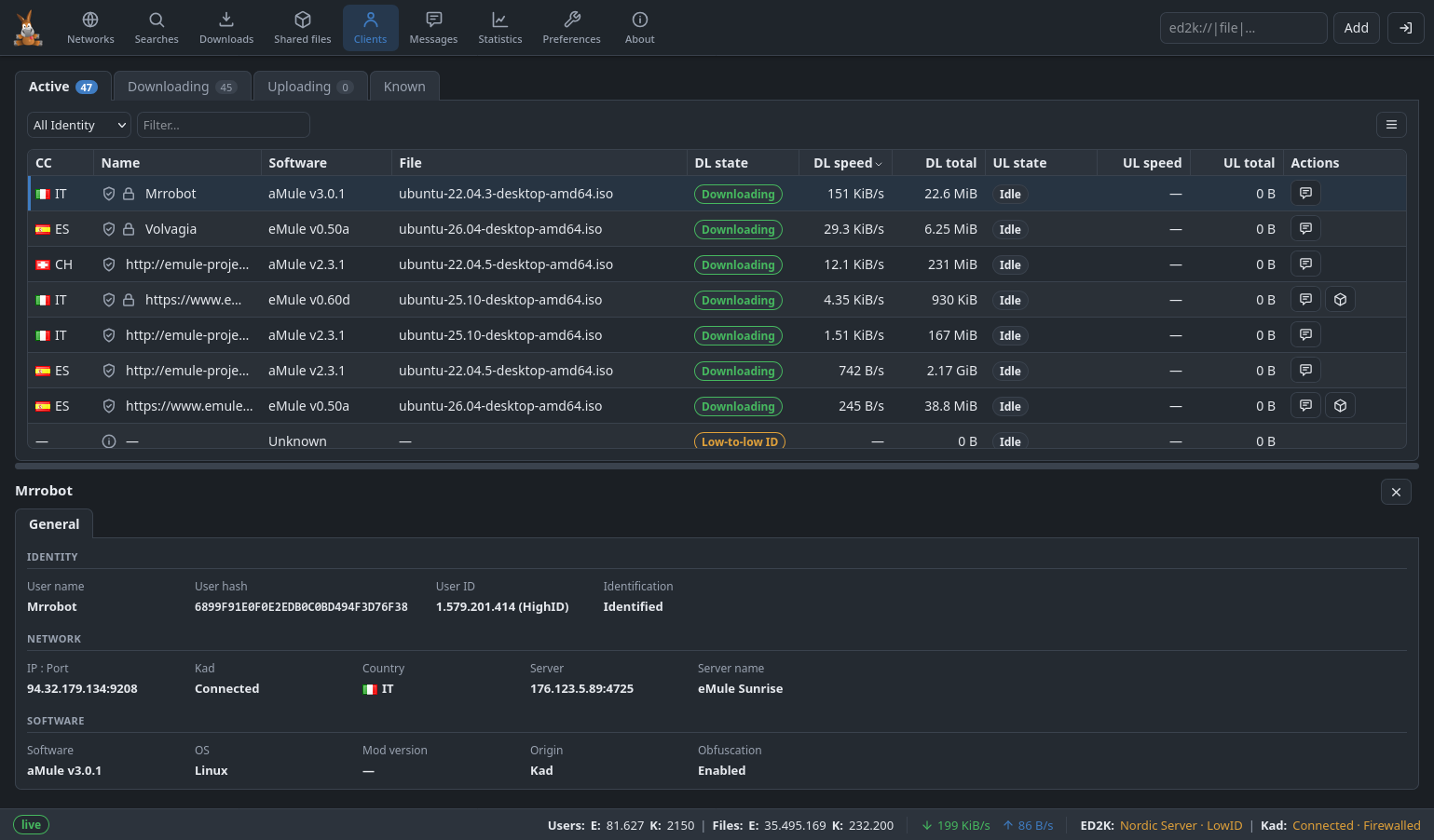

    The Clients section of the Web UI

  • Messages — chat with peers and friends: the friends list on the left, conversations on the right.

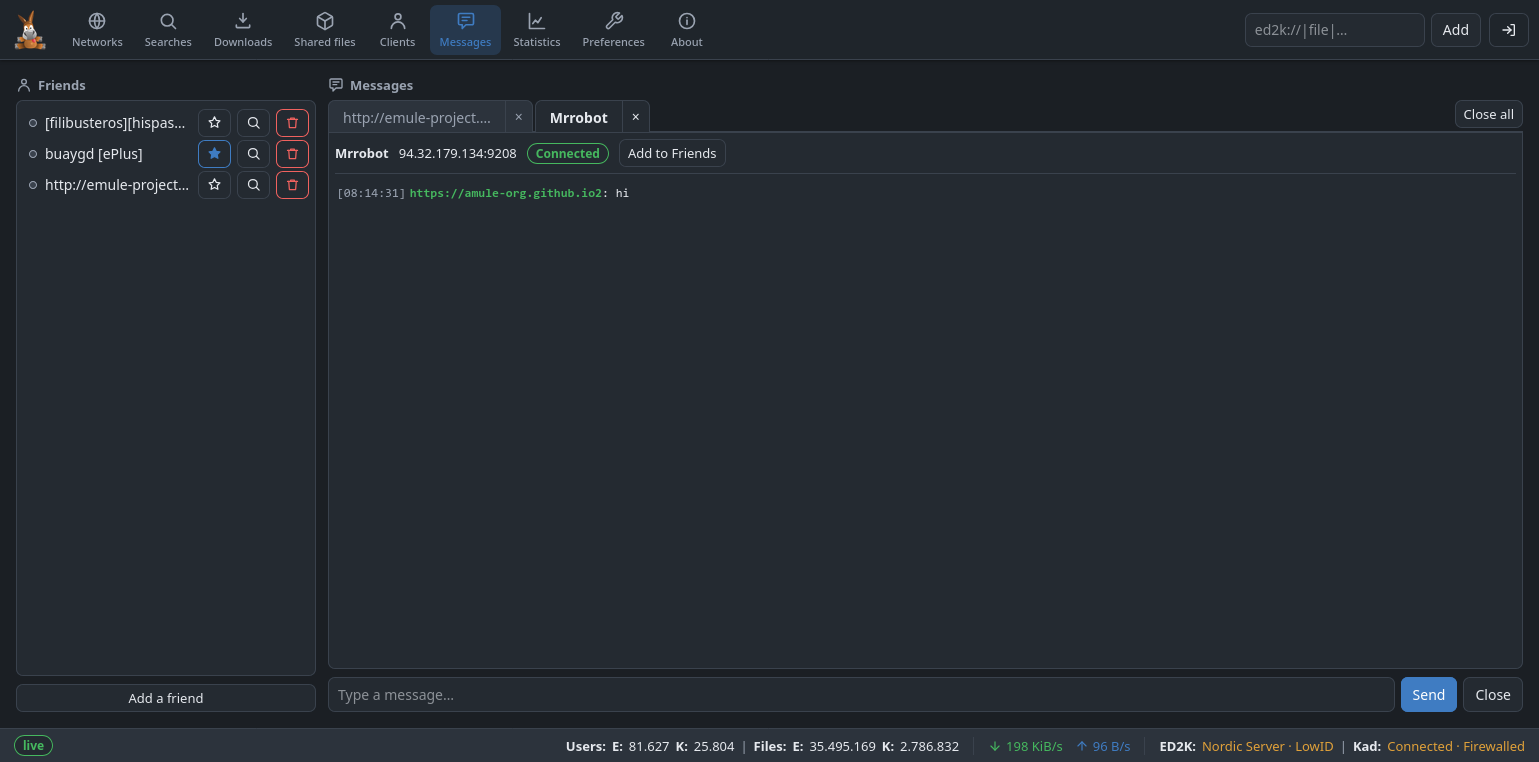

    The Messages section of the Web UI

  • Statistics — the speed graphs and statistics tree.

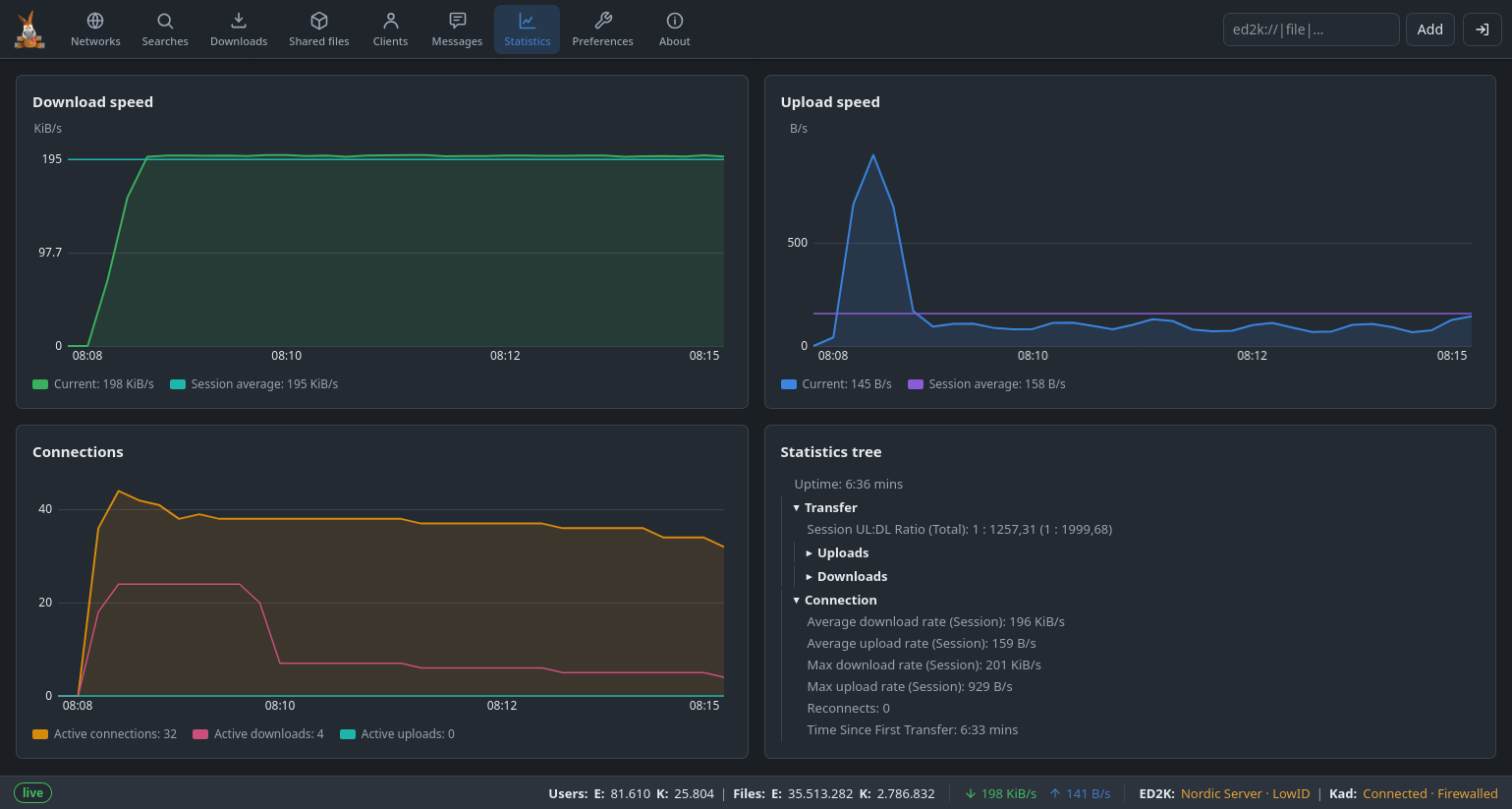

    The Statistics section of the Web UI

  • Preferences — aMule's configuration, including the shared-directories editor.

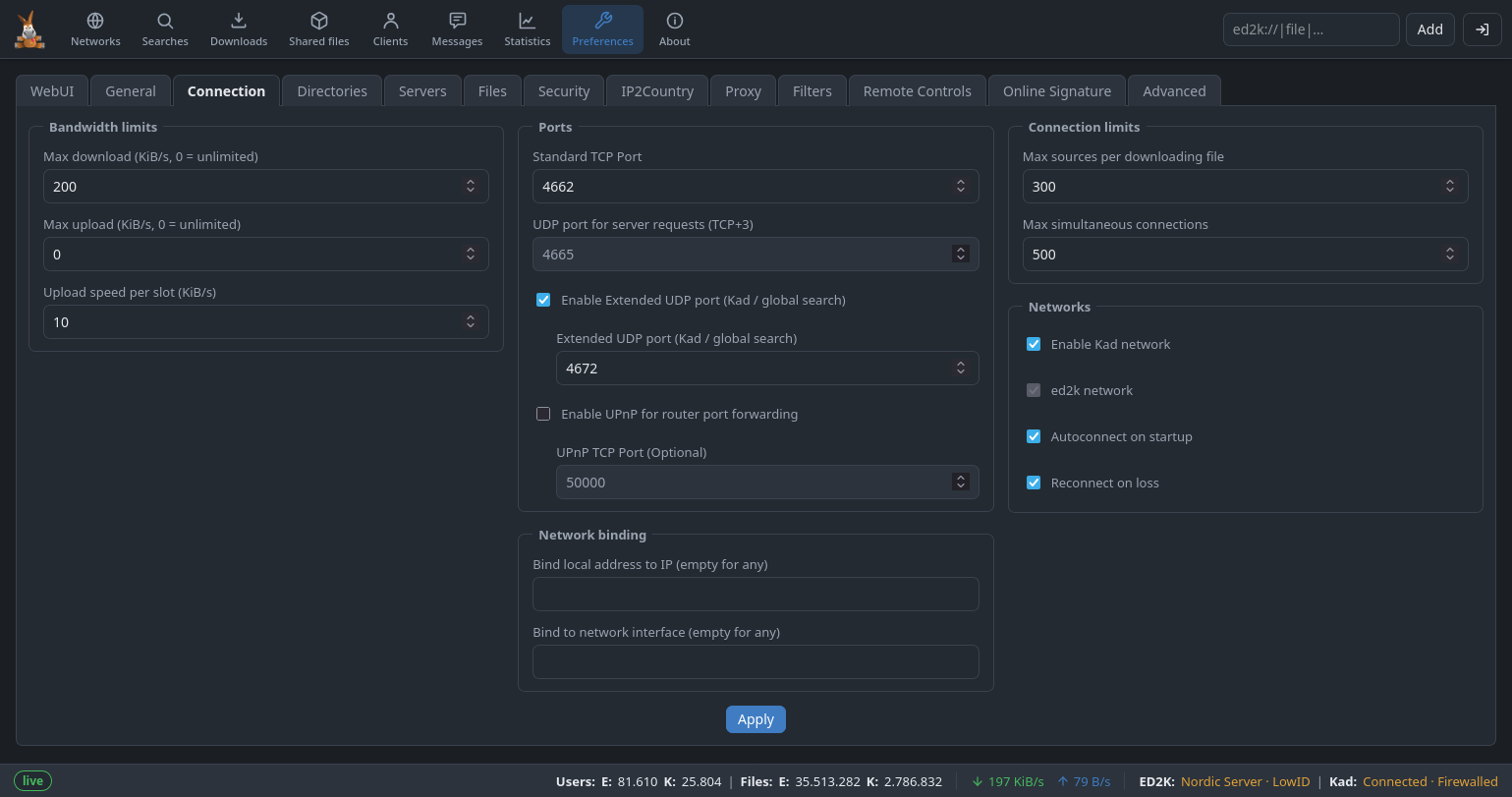

    The Preferences section of the Web UI

  • About — version information, with an update-available banner and a warning when the Web UI and core versions differ.

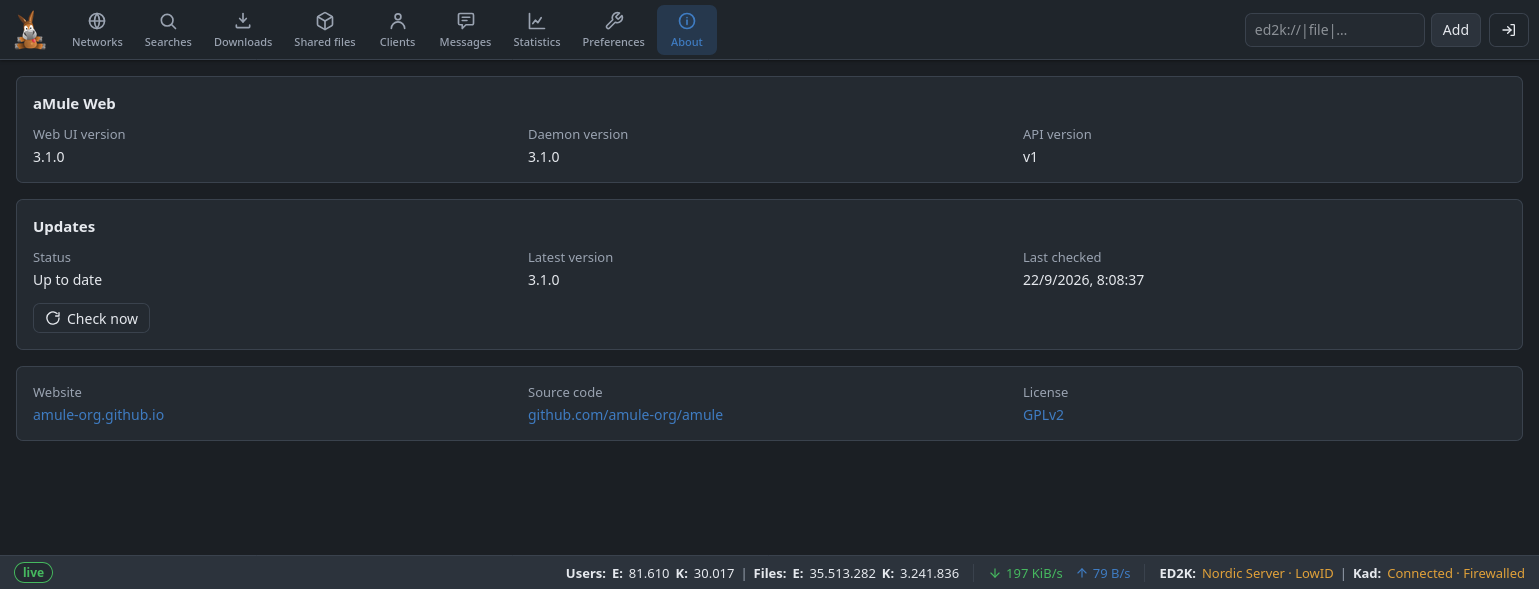

    The About section of the Web UI

Features​

  • Live, without polling. The interface is driven by the SSE stream; bursty deltas are coalesced so re-renders stay smooth. It falls back to periodic requests only if the stream fails repeatedly.

  • Themes. System, light and dark — it follows the operating system by default and can be forced either way.

  • Download to your browser. Finished shared files have a download button that streams the file straight to the browser, with the correct filename.

  • Country flags on peers and servers, as the desktop lists show them.

  • Comments over SSE. Kad notes and source comments appear on a file's Comments tab as they arrive, without polling.

  • Languages. Internationalized, with support for multiple languages.

  • Responsive. Usable down to phone width.

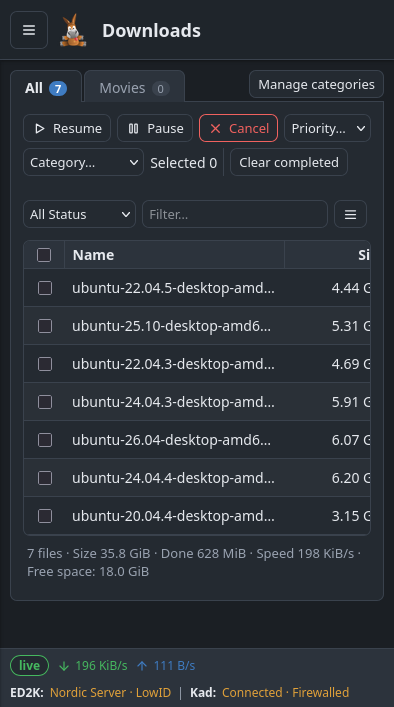

    The aMule Web UI on a smartphone
